Taito F3 Bubble Bobble 2 PROTOTYPE PCB!!!!
 Post Reply Post Reply Page  <1234>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
stevearcade View Drop Down
Kill Screen
Kill Screen

6-Button Basher
My Games

Joined: 18 June 2010
Location: Eastbourne, UK
Status: Offline
Points: 5345 		Post Options Post Options   Thanks (0) Thanks(0)   Quote stevearcade Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 10:39am
Wow! This is truly incredible.

Is this a fair example of your face on discovering this PCB?



Thumbs Up
Put that in your PCB test rig and smoke it!
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 11:46am
I think the others guys in the room might say that was pretty accurate LOL

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 12:17pm
PCB Examination

Here is the pcb, I found a couple of images on Google of one other F3 prototype board.

Here's one of a Land Maker prototype for comparison:

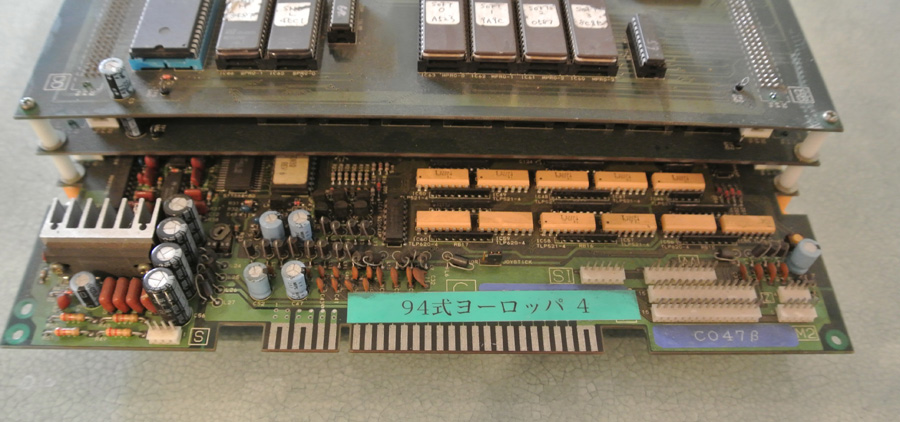

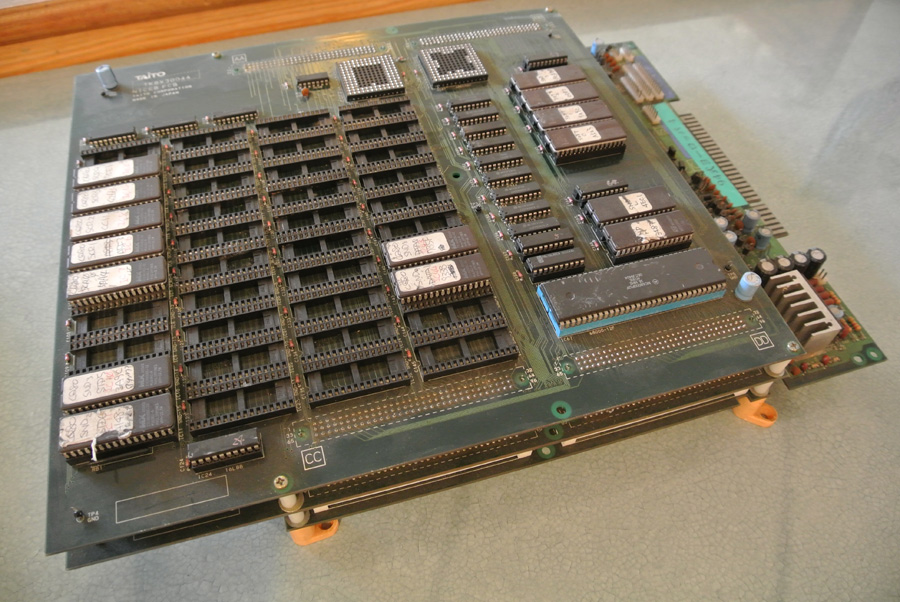

Here is the Bubble Bobble 2 prototype pcb.

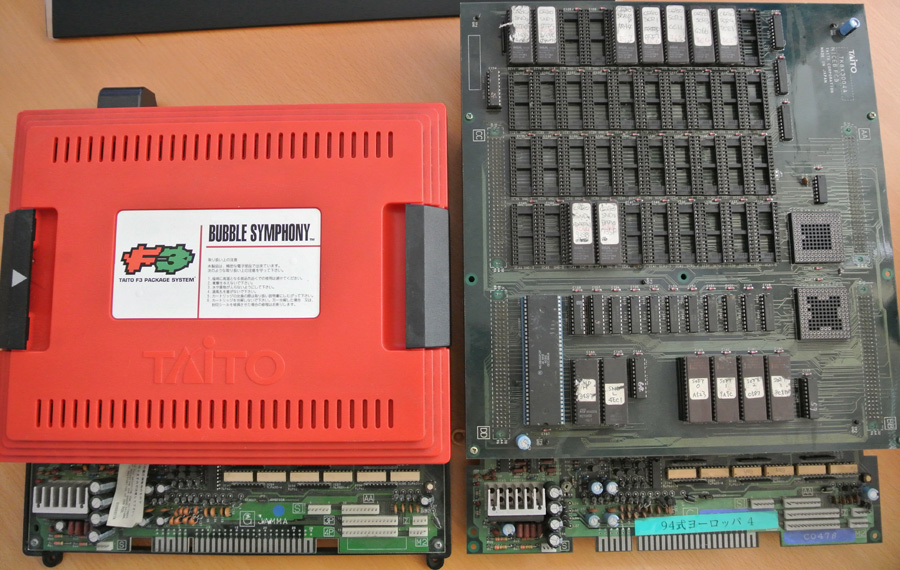

Placed alongside a Bubble Symphony cart & mobo:

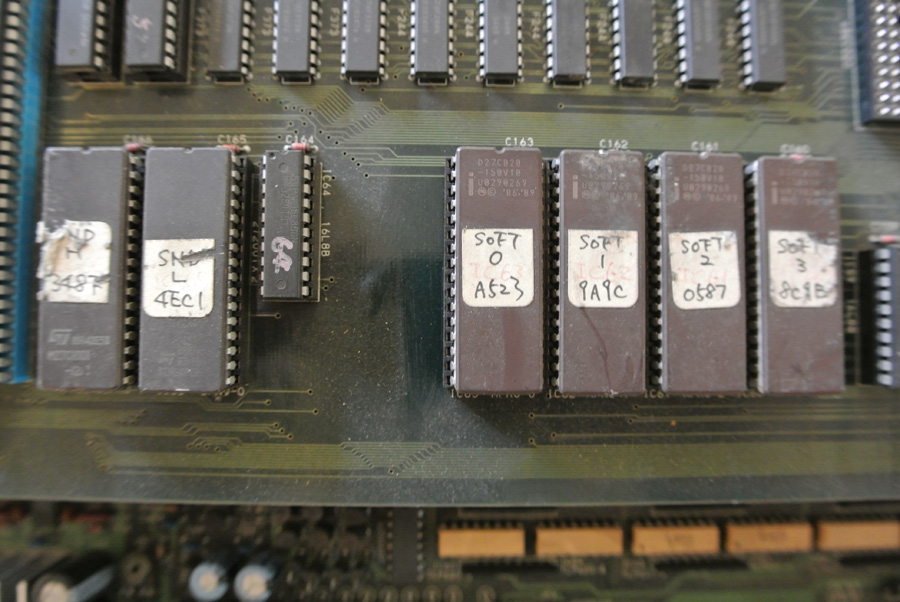

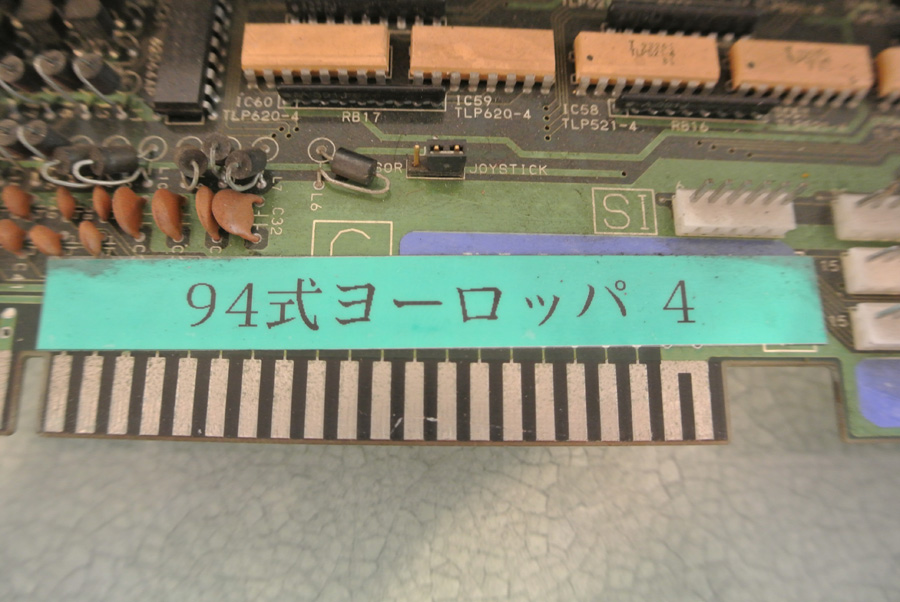

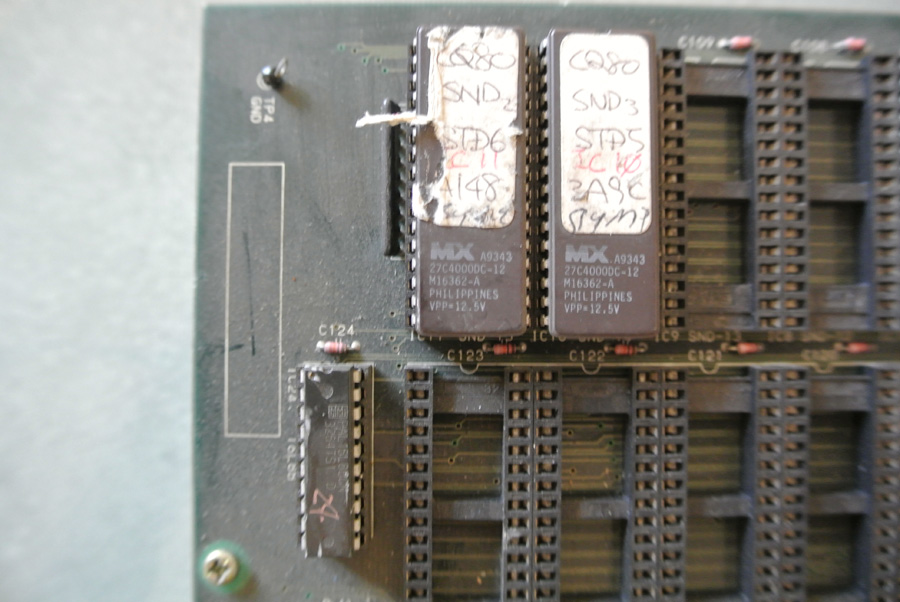

All the roms have hand written info.






Can anyone translate this?

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
slartibartfast View Drop Down
High Score
High Score
Avatar
My Games

Joined: 07 April 2010
Location: Fife
Status: Offline
Points: 528 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slartibartfast Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 12:24pm
It could translate as '94 Europa System 4'

or '94 System Europa 4'

 - Slarti


Edited by slartibartfast - 30 July 2013 at 12:25pm
'I'd far rather be happy than right any day'
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 12:27pm

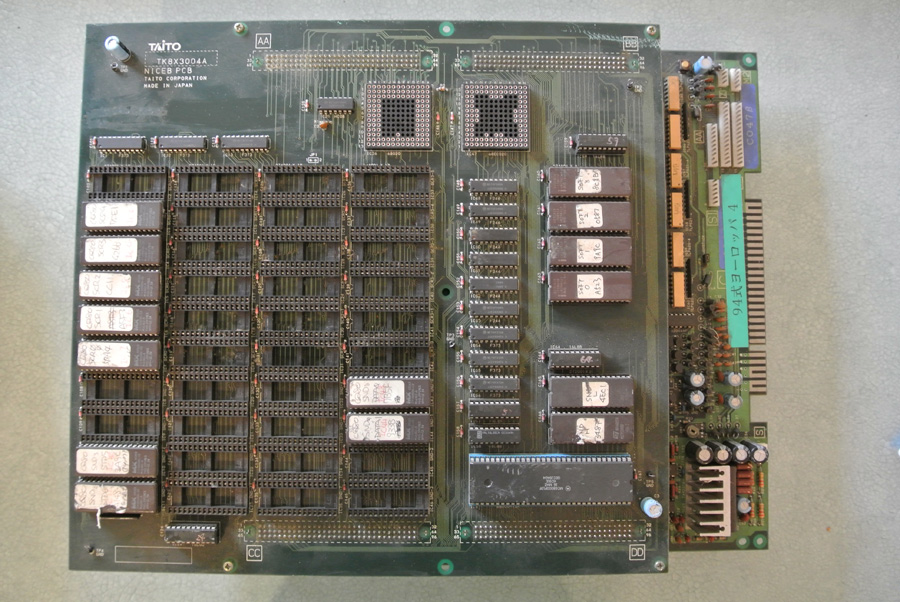

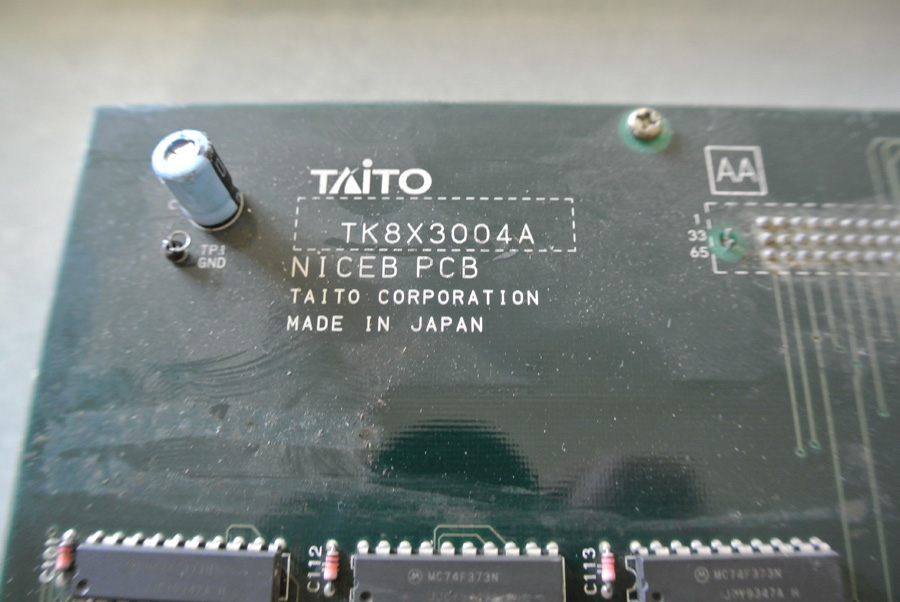

Top layer examination











NICEB PCB
TK8X3004A

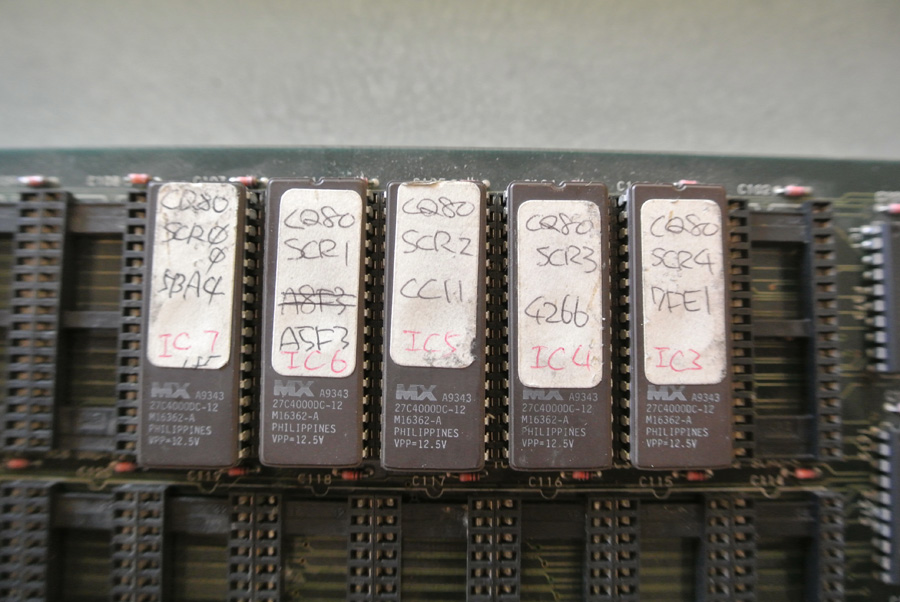

Rom list:

IC3  CQ80 SCR4 DFE1
IC4  CQ80 SCR3 4266
IC5  CQ80 SCR2 CC11
IC6  CQ80 SCR1 A5F3
IC7  CQ80 SCR0 5BA4

IC10 SND3 STD5 3A8C
IC11 SND2 STD6 A148

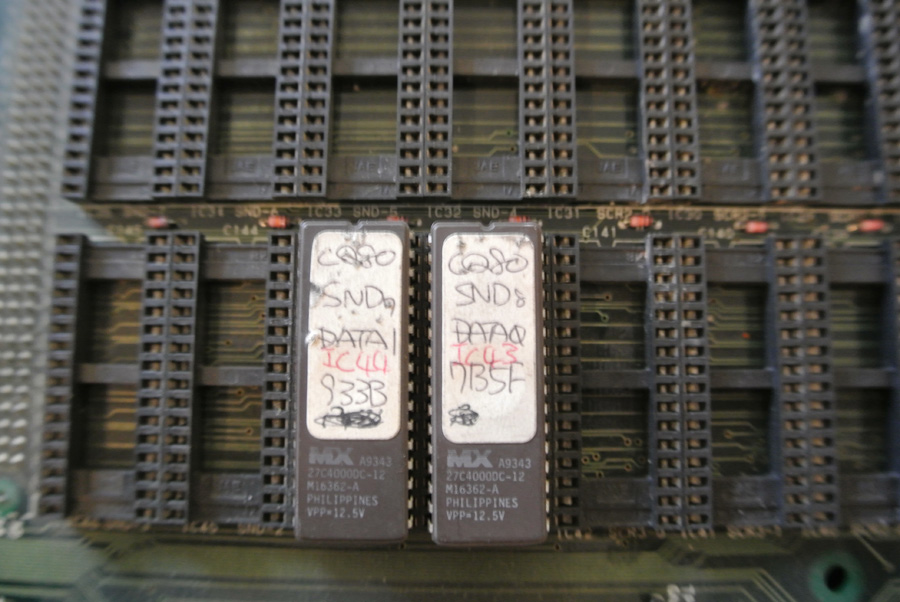

IC43 SND8 DATA0 DB5F
IC44 SND9 DATA1 933B

IC60 SOFT3 8C9B
IC61 SOFT2 0587
IC62 SOFT1 9A9C
IC63 SOFT0 A523

IC65 SNDL 4EC1
IC66 SNDH 348F

Pals 24,57,58,29,64.


Edited by muddymusic - 30 July 2013 at 12:43pm

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
cosine View Drop Down
Kill Screen
Kill Screen
Avatar
My Games

Joined: 23 July 2007
Location: Dunfermline
Status: Offline
Points: 2258 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cosine Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 12:43pm
I love it when stuff like this pops up, makes the hobby and it's pitfalls all worthwhile IMO.
So, how many pairs of pants have you gone through so far? LOL
Of all the things I've lost, I miss my sanity the most.
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 12:43pm

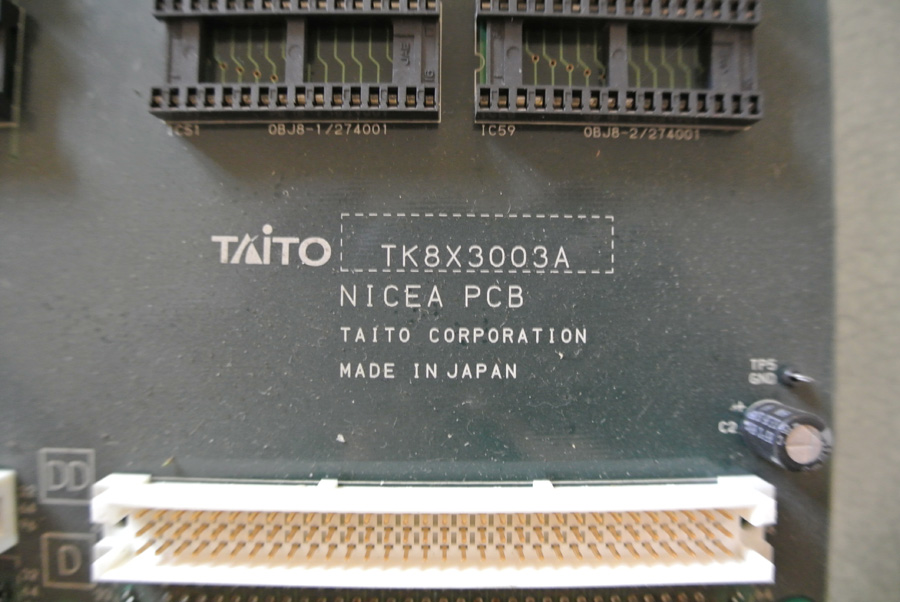

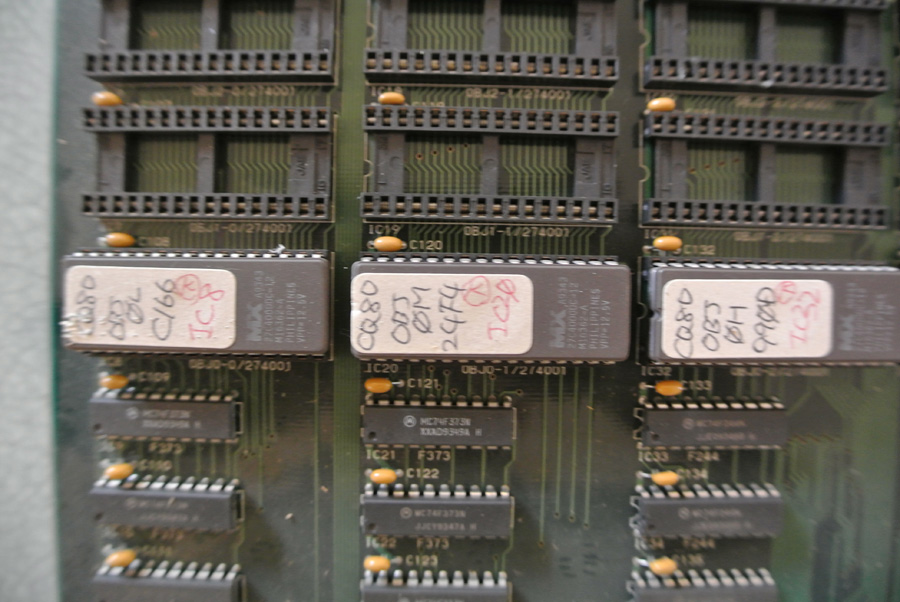

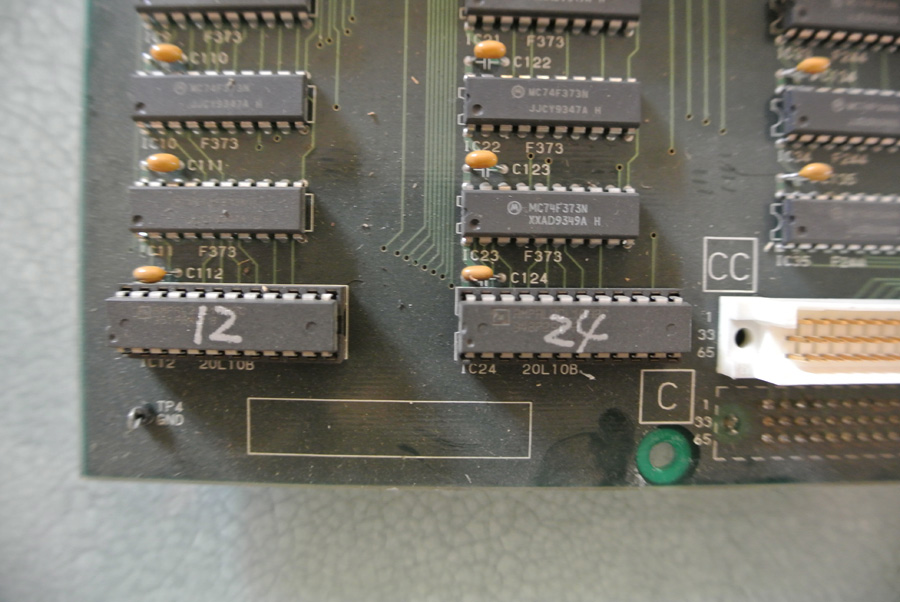

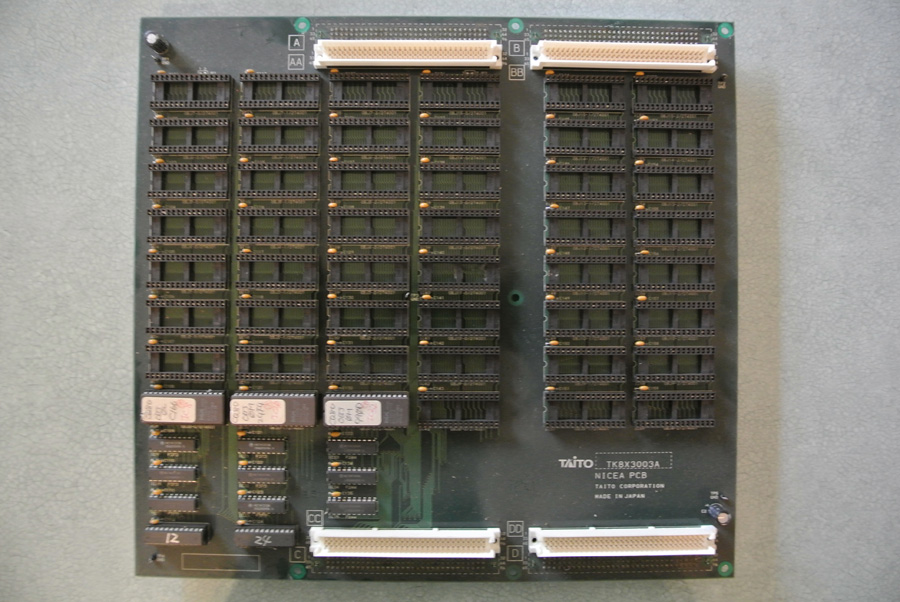

Second layer examination











NICEPCA PCB
TK8X3003A

Rom list:

IC8   CQ80 OBJ 0L C166
IC20 CQ80 OBJ 0M 24F4
IC32 CQ80 OBJ 0H 99QD

Pals 12, 24

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
vib_ribbon View Drop Down
Kill Screen
Kill Screen
Avatar
vic rippon
My Games

Joined: 08 February 2007
Location: Essex
Status: Offline
Points: 9113 		Post Options Post Options   Thanks (0) Thanks(0)   Quote vib_ribbon Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 12:57pm
have you tried stacking the game pcb onto the f3 mobo?
Please don't sell me anymore stuff!
Games fixed: 001 (green beret) 002 (ikari warriors) 003 (victory road) 004 (sfz2) 005 (double dragon) 006 (final fight) 007 (sky shark)
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 1:08pm

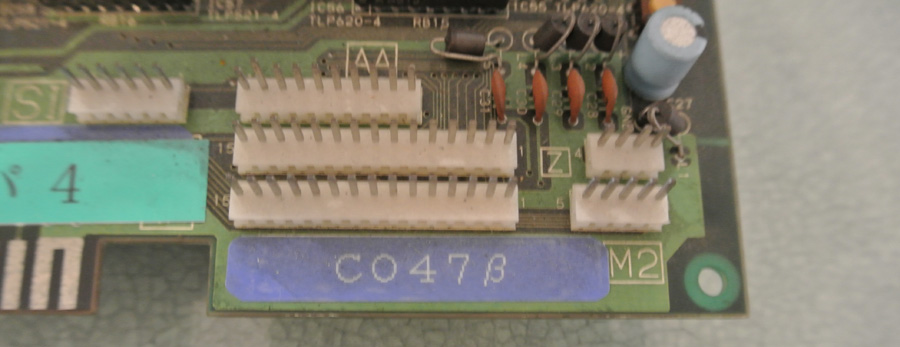

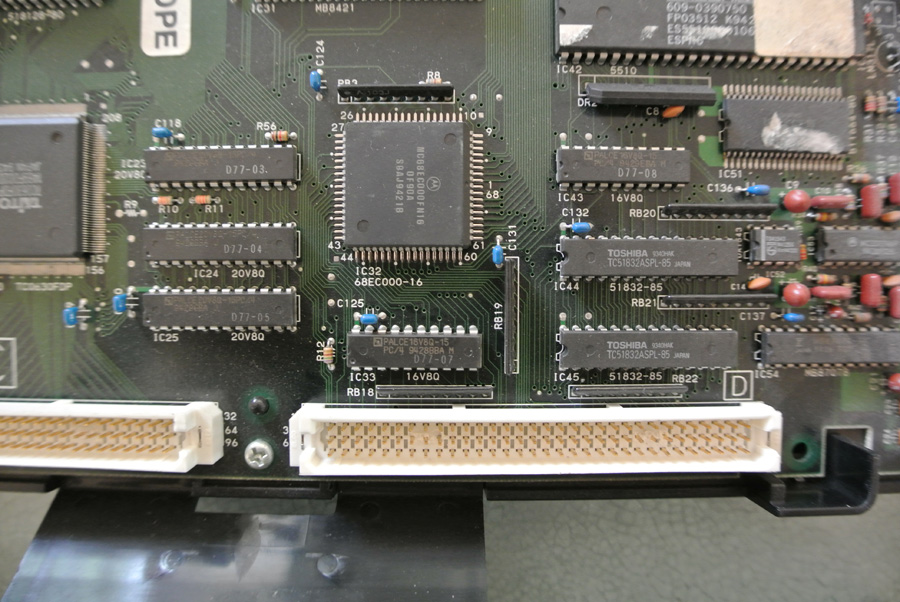

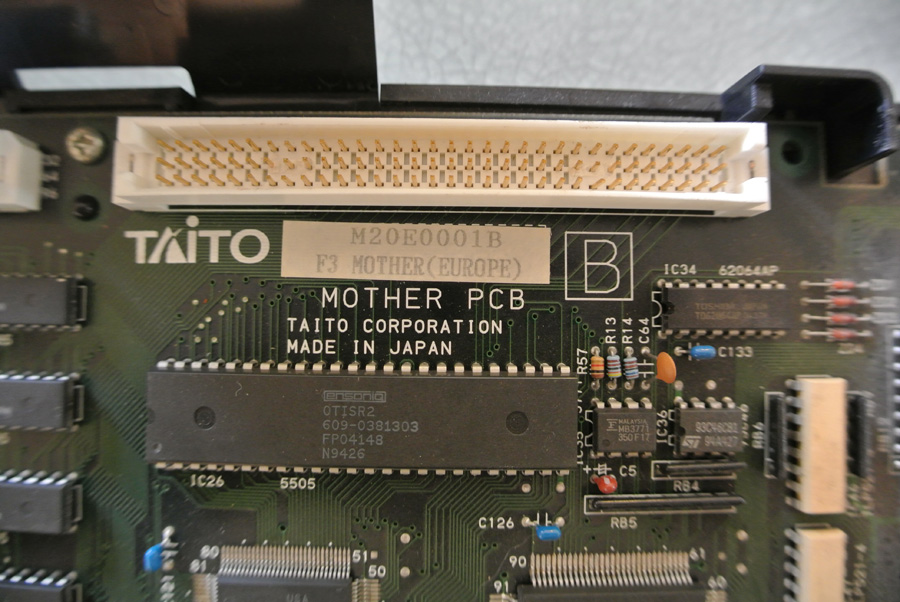

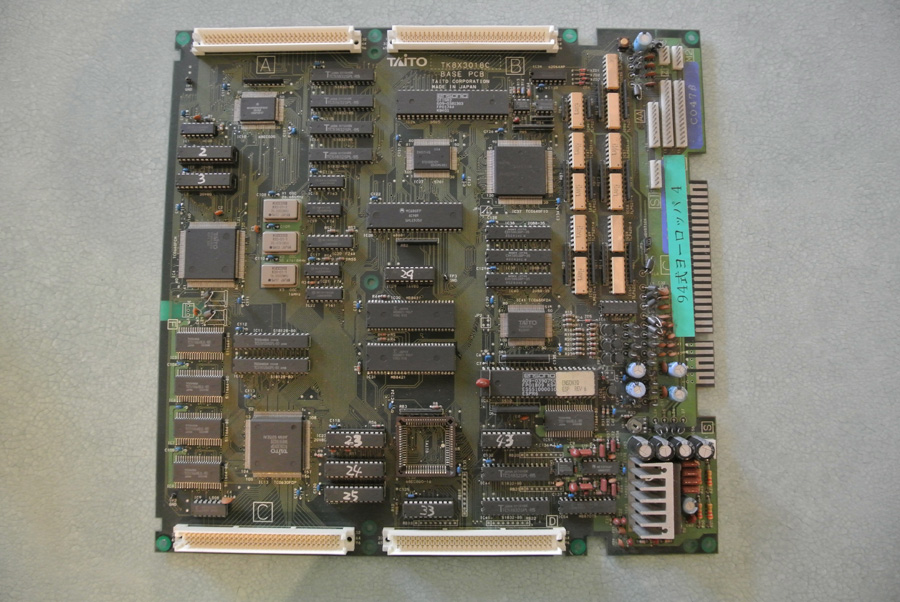

Motherboard examination

At first glance it looks to be identical to a production mobo, just without the cage. However I can see a number of differences - this may be specific to proto stuff, or it could be different revisions etc.

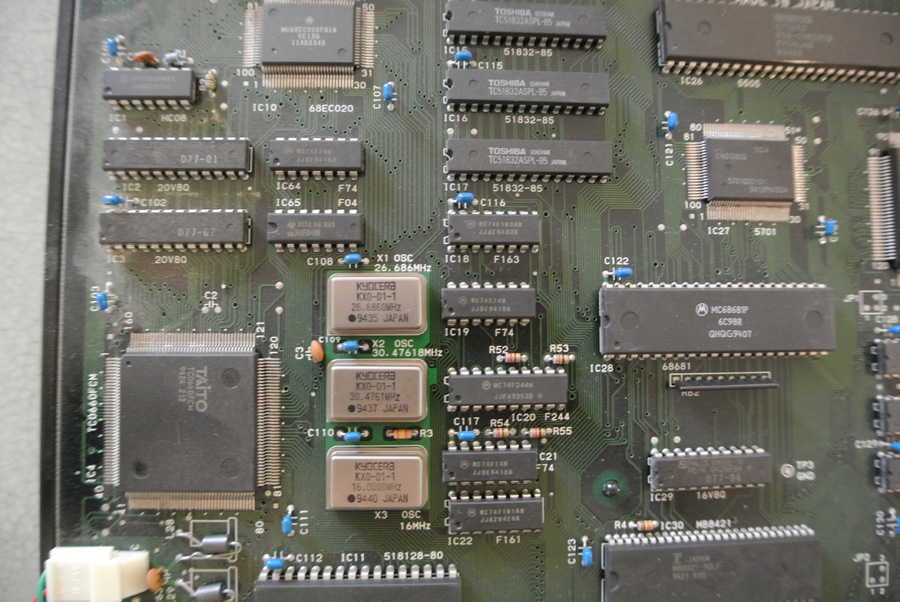

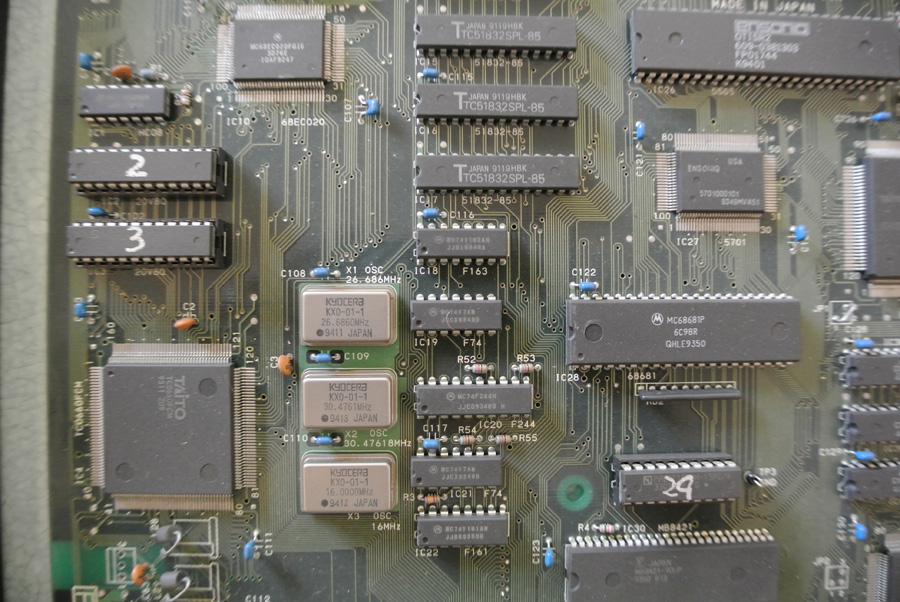

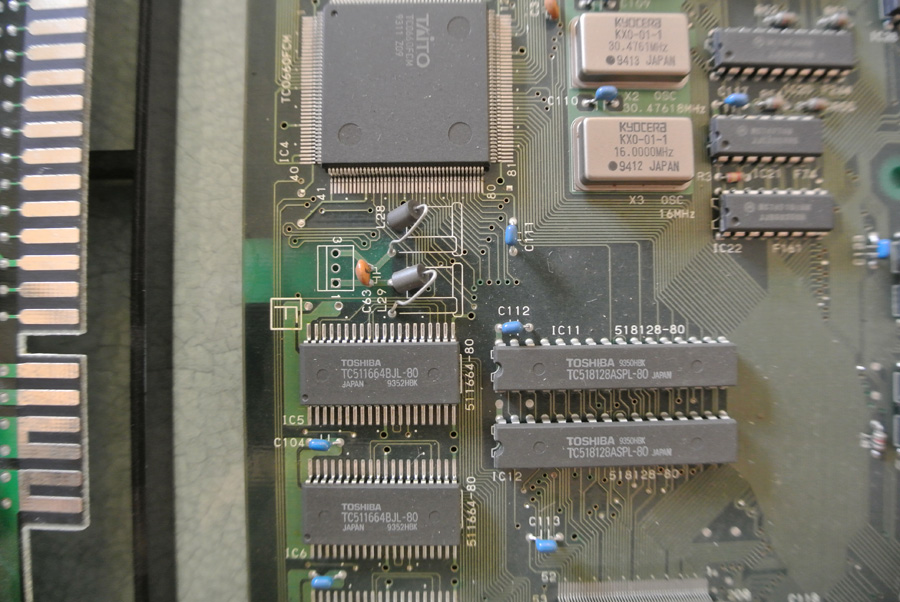

Alongside a release version:


Release:

Proto


Release:

Proto:


Release:

Proto:


Release:

Proto:

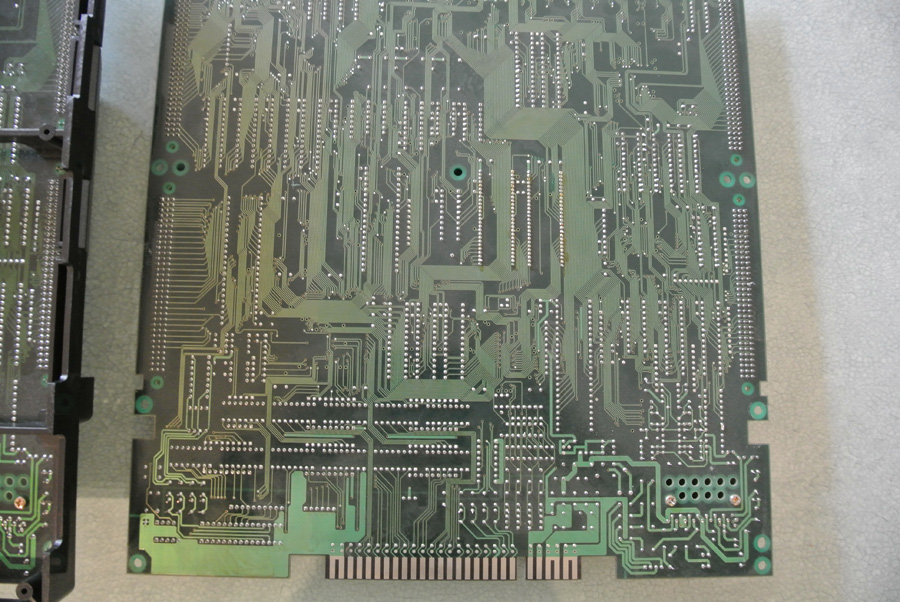

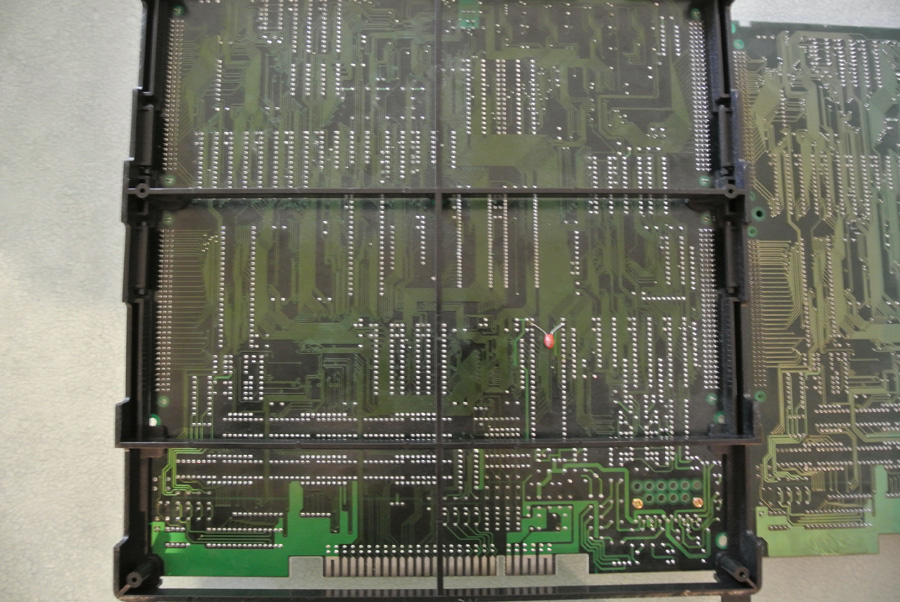

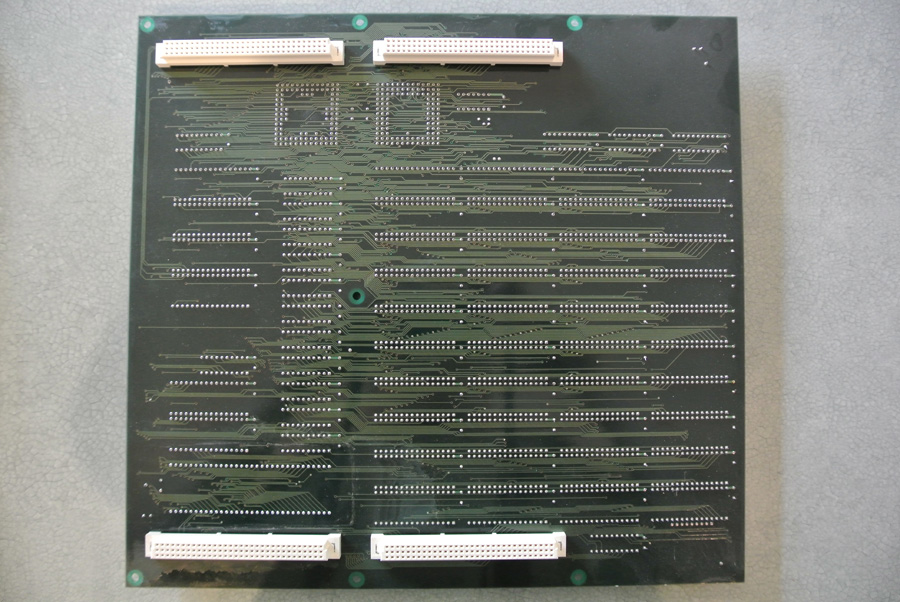

Release version solder side:

Proto:

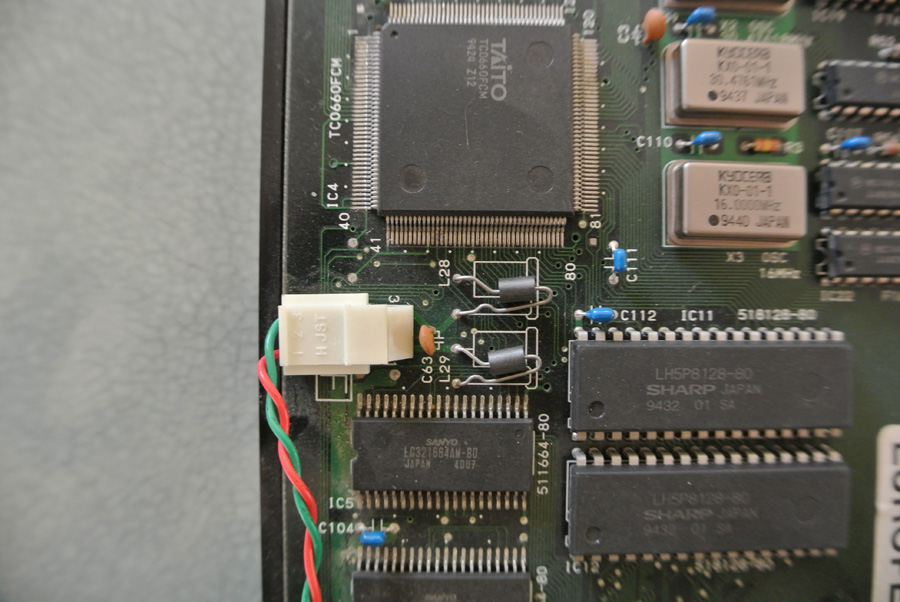

Notable differences:

No region lockout tabs on the motherboard OR the A+B layers - meaning you'd need a hacked mobo to try this on a different board.
No fan connection.
IC32 is missing on the prototype mobo.

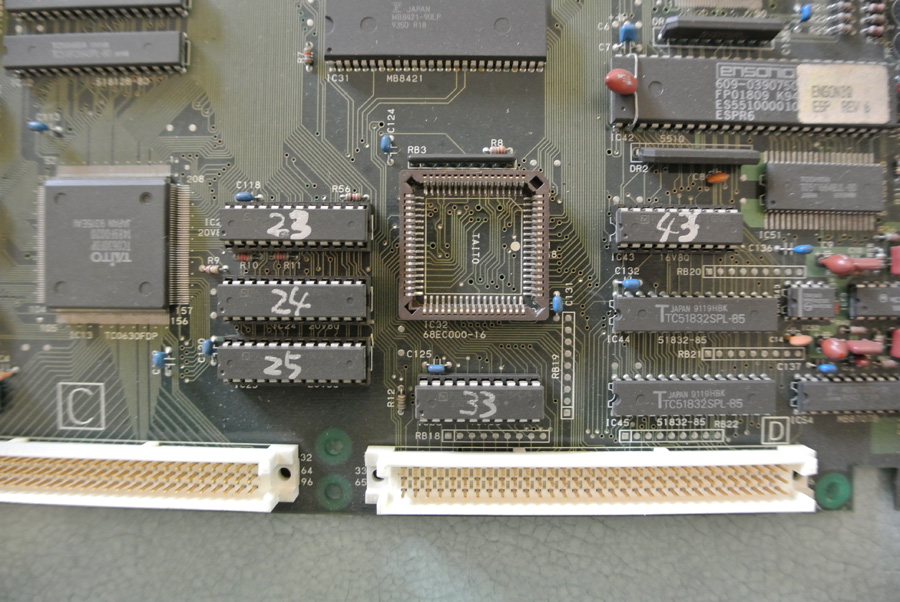

Socketed chips at locations IC2, IC3, IC23, IC24, IC25, IC29, IC33, IC43.

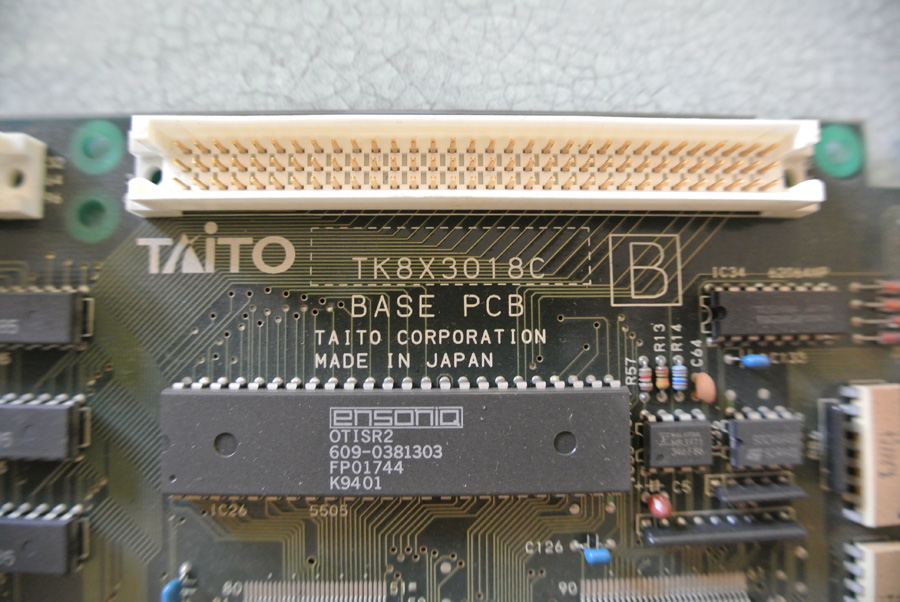

Board label: BASE PCB, TK8X3018C


Edited by muddymusic - 30 July 2013 at 1:17pm

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 1:14pm

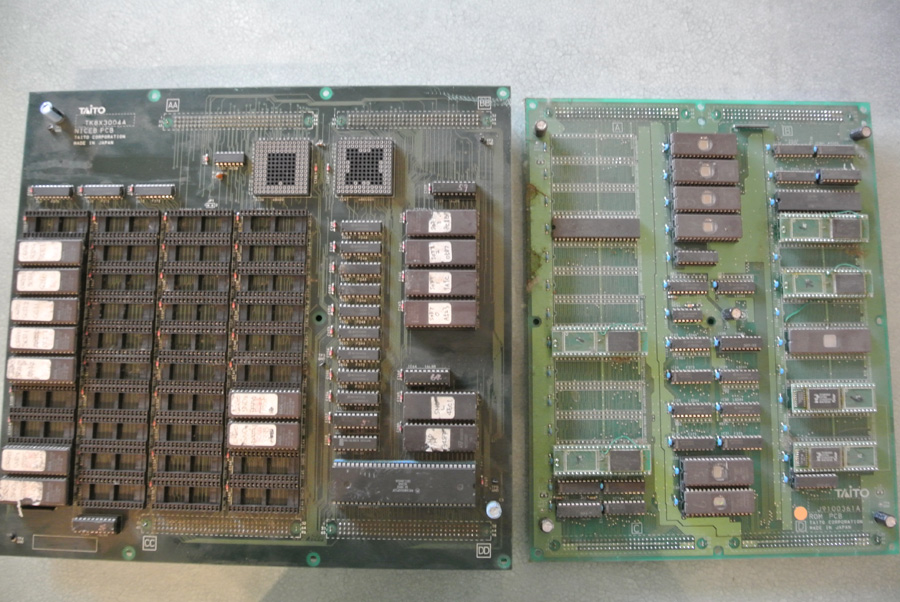

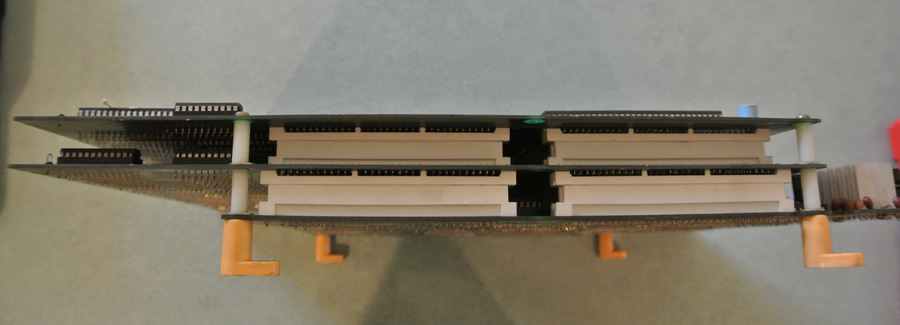

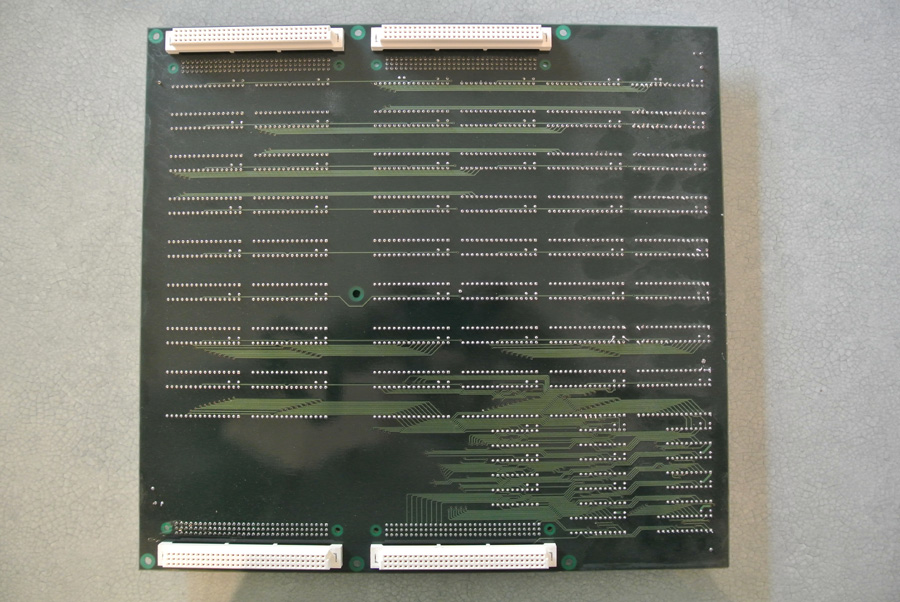

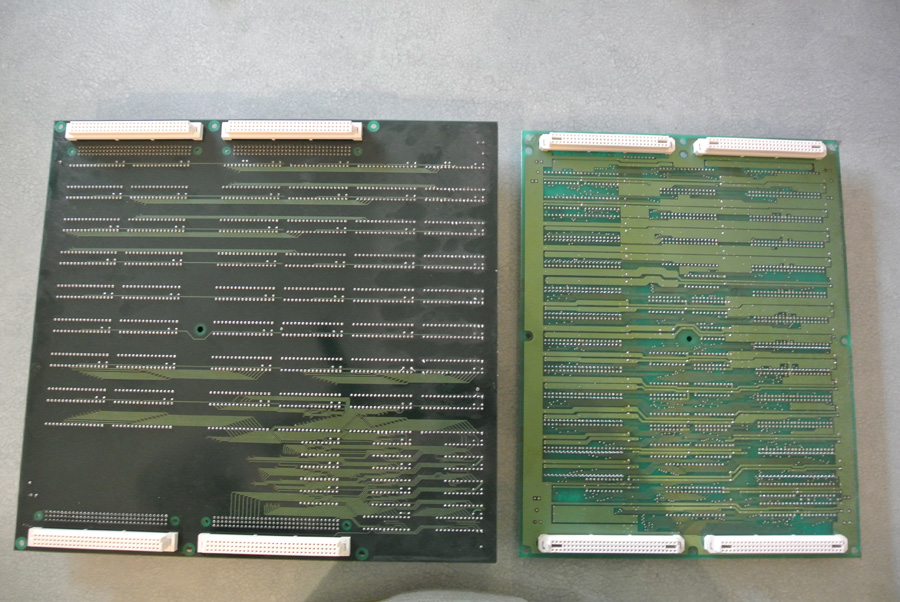

Here are the A+B layers placed alongside a production cartridge.





Next up I'll start looking at the actual game differences.

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 1:16pm
Originally posted by vib_ribbon vib_ribbon wrote:

have you tried stacking the game pcb onto the f3 mobo?

There aren't any region tabs cutout on the bottom of the A+B boards so it would need a modified motherboard to try that.

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
Jodo View Drop Down
Kill Screen
Kill Screen

Space Harrier World Champion
My Games

Joined: 12 July 2008
Location: Derbyshire
Status: Offline
Points: 4224 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jodo Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 2:18pm
Can we make this sticky please
Current projects: Space Harrier Deluxe / Firefox Upright / Something Top Secret!!
Space Harrier Arcade World Record Holder!!
Twin Galaxies Official Score: 42,384,290
Back to Top
stevearcade View Drop Down
Kill Screen
Kill Screen

6-Button Basher
My Games

Joined: 18 June 2010
Location: Eastbourne, UK
Status: Offline
Points: 5345 		Post Options Post Options   Thanks (0) Thanks(0)   Quote stevearcade Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 2:20pm
Originally posted by slartibartfast slartibartfast wrote:

It could translate as '94 Europa System 4'

or '94 System Europa 4'

 - Slarti

^ Yep. This. 94 Europa (European) System 4
Put that in your PCB test rig and smoke it!
Back to Top
virtvic View Drop Down
Kill Screen
Kill Screen
Avatar
Virtsticks™
My Games

Joined: 16 January 2006
Location: Whitton, Midsex
Status: Offline
Points: 5130 		Post Options Post Options   Thanks (0) Thanks(0)   Quote virtvic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 2:28pm
Needs more sockets
Proudly wasting 10p's since 1980

www.taitotrimlineremake.blogspot.com
Back to Top
Breaking Dad View Drop Down
High Score
High Score
Avatar
USA USA!!
My Games

Joined: 15 February 2013
Location: Buffalo,NewYork
Status: Offline
Points: 998 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Breaking Dad Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 2:42pm
Great find....my wife is big on everything happens for a reason...so you wer meant to find that...I love the timing too..last day..last grab...great story..this goes without saying prob..but enjoy it . .......Joey
Why can't I find Major Havoc...?
Back to Top
rcantor77 View Drop Down
Kill Screen
Kill Screen
Avatar
Neo Cynthia
My Games




Joined: 20 February 2011
Location: Hertfordshire
Status: Offline
Points: 6589 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rcantor77 Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 2:58pm
Originally posted by Breaking Dad Breaking Dad wrote:

Great find....my wife is big on everything happens for a reason...so you wer meant to find that...I love the timing too..last day..last grab...great story..this goes without saying prob..but enjoy it . .......Joey


It definitely was meant to be found by Olly.. and it does sound strange that he says it was the last PCB of the day. But I was there testing with Olly at that point and it was literally the last PCB on the top shelf in the office... we had been through every other one on the shelf and this was the last one to be pulled off.

Secretly I think Julian knew it was there and planted it as the last PCB for a bit of fun.

It still amuses me how Olly looked after testing it for himself... it was like a child who needs the toilet and goes all twitchy and can't stop moving... it was as if he wanted to just jump out of the door and run all the way home with it.

Back to Top
virtvic View Drop Down
Kill Screen
Kill Screen
Avatar
Virtsticks™
My Games

Joined: 16 January 2006
Location: Whitton, Midsex
Status: Offline
Points: 5130 		Post Options Post Options   Thanks (0) Thanks(0)   Quote virtvic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 3:09pm
He was just like Charlie Bucket.

Or Muddy Bucket.

That just sounds wrong
Proudly wasting 10p's since 1980

www.taitotrimlineremake.blogspot.com
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 3:30pm
Originally posted by stevearcade stevearcade wrote:

Originally posted by slartibartfast slartibartfast wrote:

It could translate as '94 Europa System 4'

or '94 System Europa 4'

 - Slarti

^ Yep. This. 94 Europa (European) System 4

Thanks chaps Smile

Bubble Bobble Twin Galaxies Official Score 6,730, Rainbow Islands 9,999,990, Road Fighter 1,174,510.
Back to Top
Konami79 View Drop Down
Level Up
Level Up
Avatar
My Games



Joined: 15 November 2012
Location: Birmingham
Status: Offline
Points: 222 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Konami79 Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 4:59pm

Wow, what a great find! And great to read about!
I got 00111001 00111001 problems, but binary aint one.
Back to Top
muddymusic View Drop Down
Moderator
Moderator
Avatar
My Games




Joined: 08 June 2010
Location: Somerset
Status: Online
Points: 10716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2013 at 5:50pm
So here's what you've been waiting for - a video of the game running.

Here's a 5 minute cycle of the attract mode from Bubble Symphony.


And here's a 5 minute cycle of the attract mode from the prototype. There's one VERY big difference you'll notice right away!
