Major Title pcb repair
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
ben76 View Drop Down
Kill Screen
Kill Screen
Avatar
Official Porchy fan club member

Joined: 21 June 2011
Location: Macc, Cheshire
Status: Offline
Points: 20952 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ben76 Quote  Post ReplyReply Direct Link To This Post Topic: Major Title pcb repair
    Posted: 05 February 2015 at 12:06am
Hi all,

I recently got a Major Title pcb however it was faulty! Which was good as I've not been well recently and needed something to focus on. The pcb arrived on Monday 2nd Feb and I had time to get straight on it!

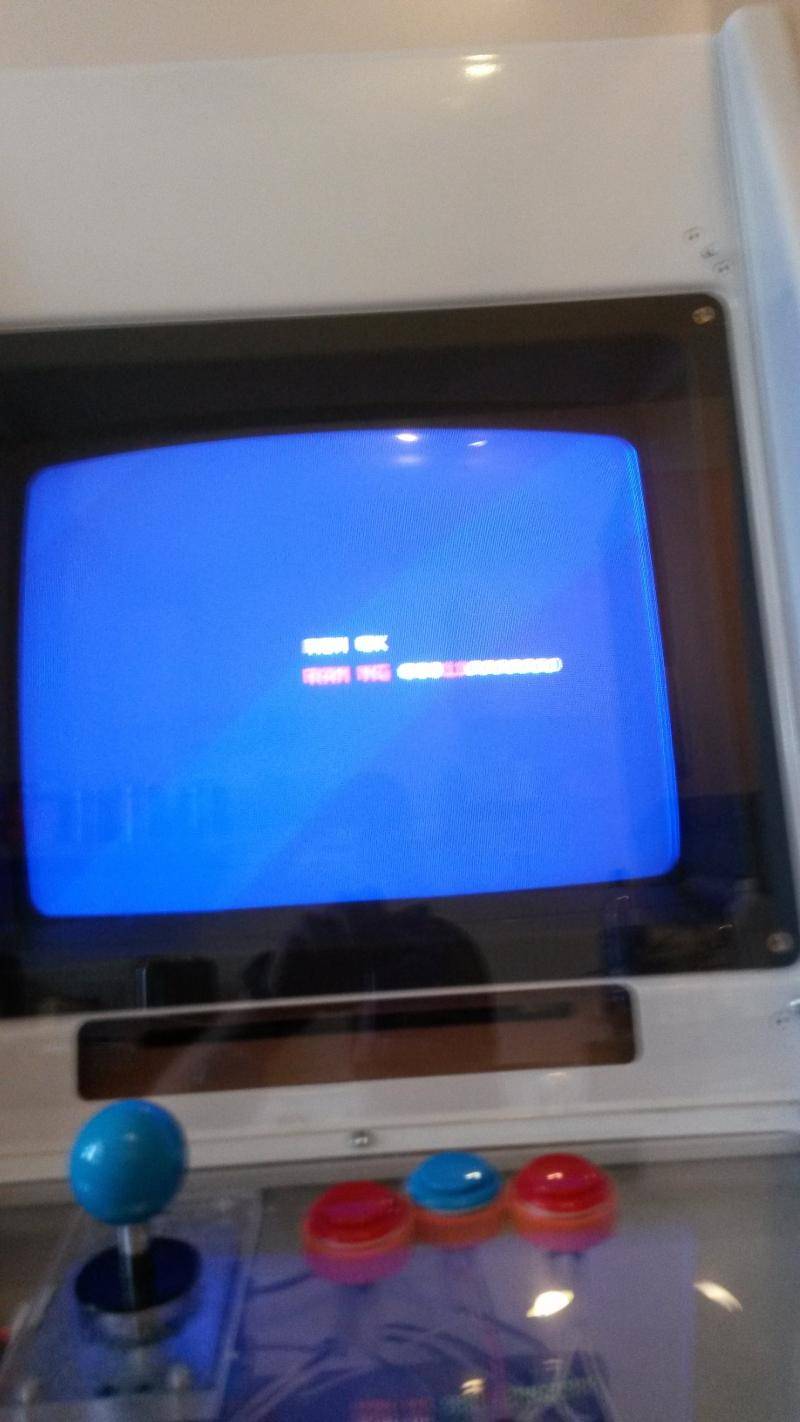

1st plug in gave out a ram problem.





That was the pcb saying which rams are bad and also the Major Title logo was messed up and over too the left.

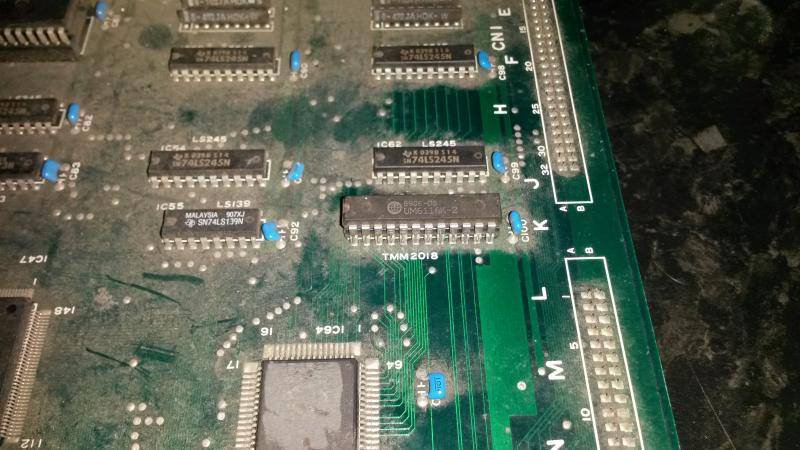

I looked online for the schematics and couldn't find any Ouch so I looked for repair logs and one on Aussie Arcade by IG/VG sort of matched so I piggybacked a ram and the logo appeared back where it should and one of the red '1' had gone back to a '0'... result I removed it and socketed in another 6116...





I was getting somewhere... This then led me to piggybacking ram to see if any difference occurred. Not much happened then I realised the ram maybe working in pairs so tried piggybacking multiple rams. Slowly I started getting somewhere.... (and forgot to take pics of the roms!)

Anyway....

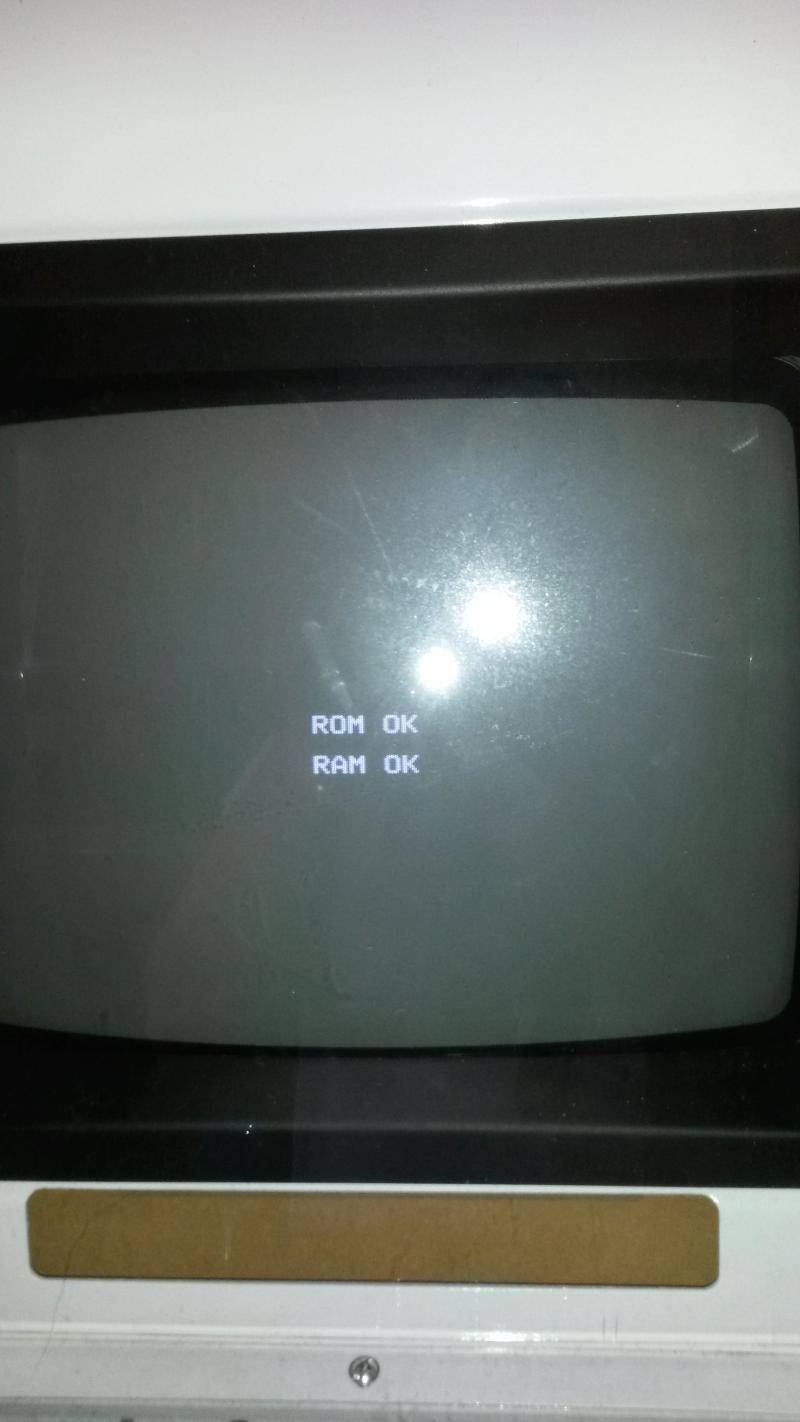

After a total of 7 6116 rams changed (thank you sf2 boot pcbs!)

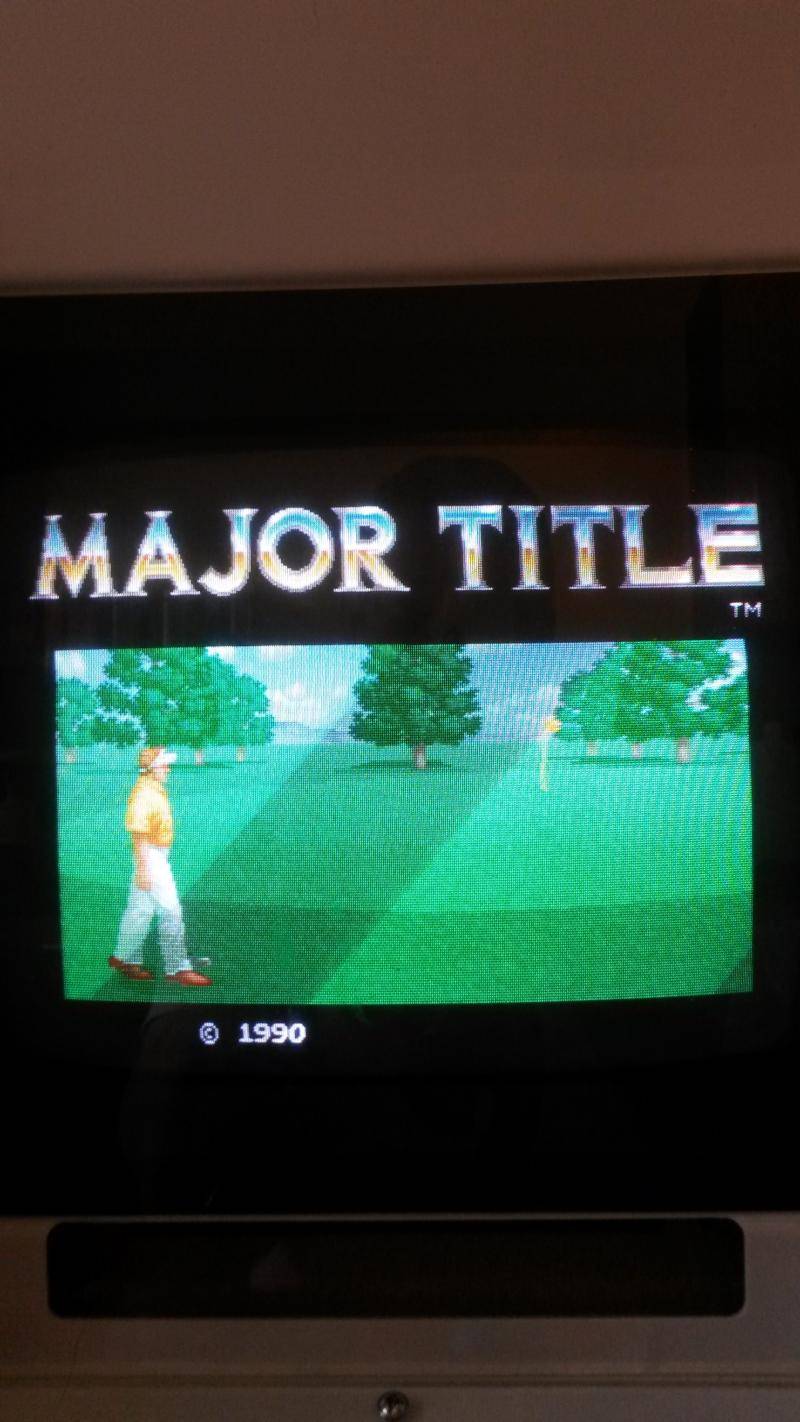

Enjoyed that one Smile now to rtype it.... Big smile

- Ben

P.S. I think I am right with the 6116 ram being tied in lots of 2 and also it seems to like 2 of the exact same (I did try the same speed marked but it didn't like it so had to change both!)
P.P.S. Not sure why it had 3 faulty ram chips reported and I had to change 4 locations overall Confused
I Porchy
Back to Top
mr_ppp View Drop Down
Patreon
Patreon
Avatar

Joined: 05 January 2010
Location: Gloucestershire
Status: Offline
Points: 1571
 Post Options Post Options   Thanks (0) Thanks(0)   Quote mr_ppp Quote  Post ReplyReply Direct Link To This Post Posted: 05 February 2015 at 12:13am
Nice one Ben! Hope I'll be able to do things like this one day Smile
My Console Games Collection
Back to Top
Nimajamin View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 11 September 2012
Location: London
Status: Offline
Points: 2425
 Post Options Post Options   Thanks (0) Thanks(0)   Quote Nimajamin Quote  Post ReplyReply Direct Link To This Post Posted: 13 February 2015 at 1:49pm
Now to Par-Type it Big smile ..gosh, I better pull my finger out & get that guide sorted.
Join the resistance..! (Lead solder is preferable)
Back to Top
tb2000 View Drop Down
Moderator
Moderator
Avatar
Da Mon

Joined: 10 April 2005
Location: West Country
Status: Offline
Points: 9115
 Post Options Post Options   Thanks (0) Thanks(0)   Quote tb2000 Quote  Post ReplyReply Direct Link To This Post Posted: 13 February 2015 at 1:53pm
Originally posted by Nimajamin Nimajamin wrote:

Now to Par-Type it Big smile ..gosh, I better pull my finger out & get that guide sorted.
Please! Big smile I've got one to do for myself and one for Olly! I've also got a faulty Major Title 2 which I think is ripe for a R-Type Leo conversion! LOL
Currently looking for: 14" and 19"/20" Hantarex/WG/Electrohome/Kortek etc. monitor frames
Back to Top
Nimajamin View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 11 September 2012
Location: London
Status: Offline
Points: 2425
 Post Options Post Options   Thanks (0) Thanks(0)   Quote Nimajamin Quote  Post ReplyReply Direct Link To This Post Posted: 13 February 2015 at 1:55pm
The basic trick is to use a pair of 74LS157's (basically each one is a 4 way switch (two sets of 4 inputs, 4 outputs & an A/B select) to route the 5 (iirc) pcb mods to be either modded - or not, based on the Hi/Low Rom select signal routed around the board. (The Bydo Orange wire in the original post)

The reason I dont have a guide prepared was that I just went through each mod in turn. Wish I documented the second one I did, it was much neater, using more of the original traces - in place of patch wire.

I did photo it tho, so I should be able to retroactively doc it.
Join the resistance..! (Lead solder is preferable)
Back to Top
ben76 View Drop Down
Kill Screen
Kill Screen
Avatar
Official Porchy fan club member

Joined: 21 June 2011
Location: Macc, Cheshire
Status: Offline
Points: 20952 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ben76 Quote  Post ReplyReply Direct Link To This Post Posted: 13 February 2015 at 4:20pm
Originally posted by Nimajamin Nimajamin wrote:

Now to Par-Type it Big smile ..gosh, I better pull my finger out & get that guide sorted.
Still waiting.... TongueLOL got enough chips sorted to do 1 dual conversion

- Ben
I Porchy
Back to Top
capcomguru View Drop Down
Power Up
Power Up


Joined: 26 February 2015
Location: USA
Status: Offline
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote capcomguru Quote  Post ReplyReply Direct Link To This Post Posted: 26 February 2015 at 8:10pm
nice, thanks for sharing
Back to Top
GadgetFreak View Drop Down
Power Up
Power Up
Avatar

Joined: 18 November 2016
Location: UK
Status: Offline
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote GadgetFreak Quote  Post ReplyReply Direct Link To This Post Posted: 18 November 2016 at 12:47pm
Hi,
I know this is an old post but I have a MT that is showing exactly the same ram errors, yours is the only repair post I have managed to find for this problem.
Do you remember which rams you replaced to clear those 2 ram faults?
Back to Top
