Sega Naomi/Net City/NAC/Blast etc CP CAD files
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
FrancoB View Drop Down
Kill Screen
Kill Screen
Avatar
Plastic Fantastic, Loom Legend.

Joined: 04 April 2010
Location: Lincoln
Status: Offline
Points: 2019 		Post Options Post Options   Thanks (2) Thanks(2)   Quote FrancoB Quote  Post ReplyReply Direct Link To This Post Topic: Sega Naomi/Net City/NAC/Blast etc CP CAD files
    Posted: 27 February 2015 at 9:11am

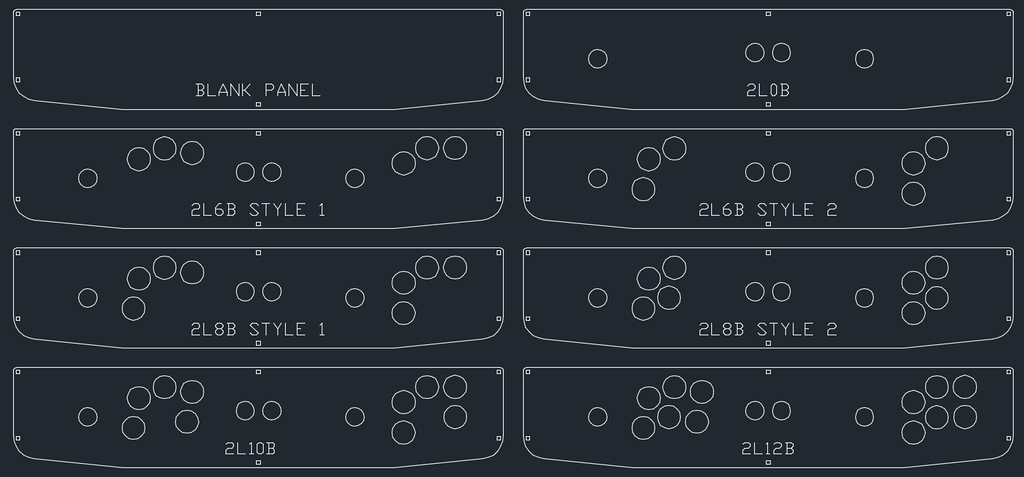

I've got the following panels uploaded in .DWG and .DXF:





You can download them [here]

I can also export them to .EPS if required, just let me know.

Please note that some hole positions may vary from one manufacturer to another. If you're designing an overlay to fit an existing panel it might be worth doing a test print prior to getting your CPO printed to make sure everything aligns as it should.

I do know a couple of panels have been cut from these plans though and they fit Sega cabs nicely.
