    Posted: 02 September 2010 at 9:37pm
Due to popular demand I'm going to resurect an old thread from Killercabs...

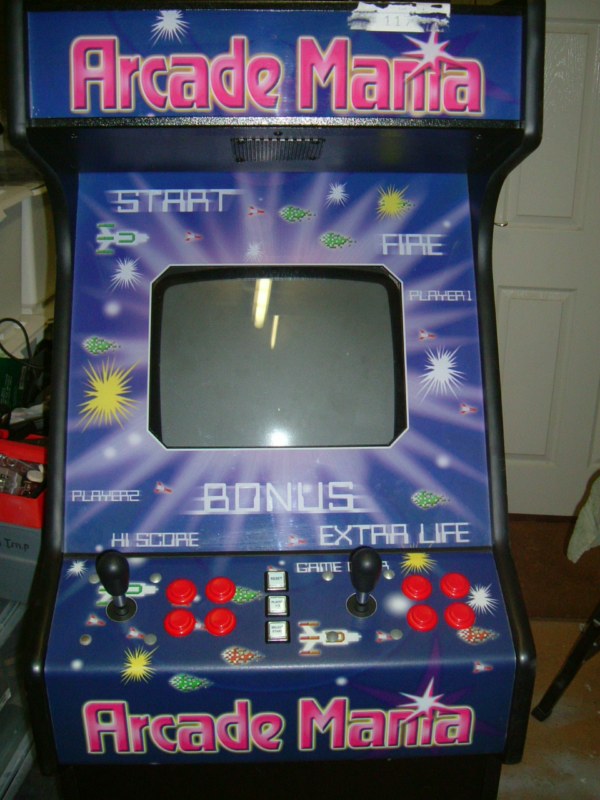

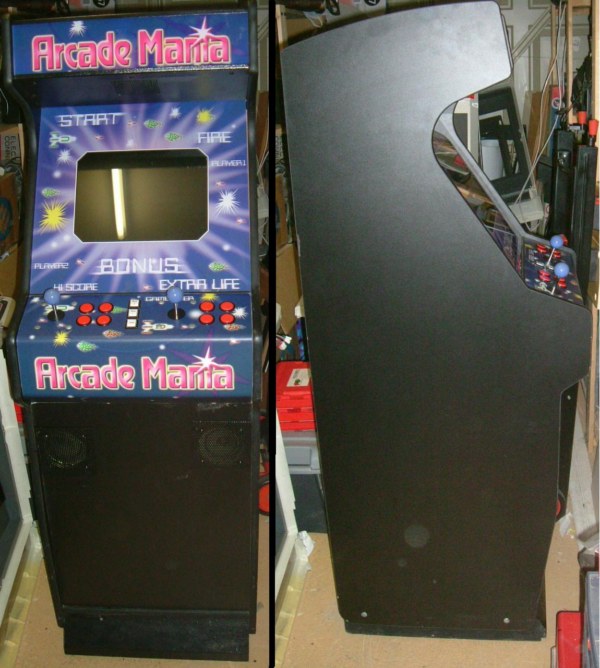

I spotted a badly advertised broken "Arcade Mania" cab on ebay and snapped it up for the opening bid of £75 + a 70 Mile drive to fetch it.




So initial thoughts....

Nasty X-Arcade joysticks and red buttons, Screens a bit small (bezel's a bit wide), cheapo function buttons.

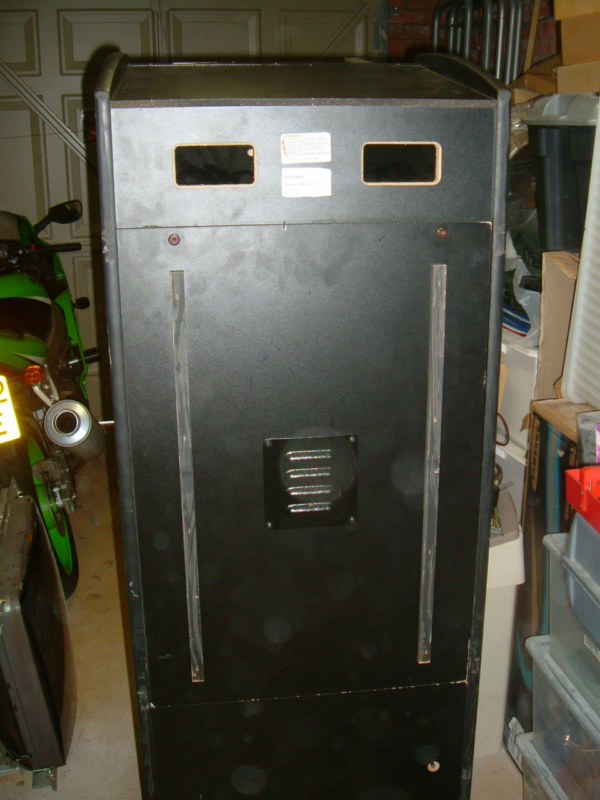

Cab build quality is actually quite good and it has a serial number sticker with "CE", warentee void if removed sticker. Two screws hold the back door in place.
Back to Top
andrewberwick06 View Drop Down
Patreon
Patreon
Avatar

Joined: 10 July 2010
Location: Romford.
Status: Offline
Points: 2861 		Post Options Post Options   Thanks (0) Thanks(0)   Quote andrewberwick06 Quote  Post ReplyReply Direct Link To This Post Posted: 02 September 2010 at 9:43pm
hehe cool :) nice to see the photos of how bad these buggers are.
ლ(ಠ_ಠლ)
Back to Top
penrhos View Drop Down
Moderator
Moderator
Avatar

Joined: 28 August 2006
Location: Leicestershire
Status: Offline
Points: 3140 		Post Options Post Options   Thanks (0) Thanks(0)   Quote penrhos Quote  Post ReplyReply Direct Link To This Post Posted: 02 September 2010 at 9:50pm
Lets start taking this to bits.....

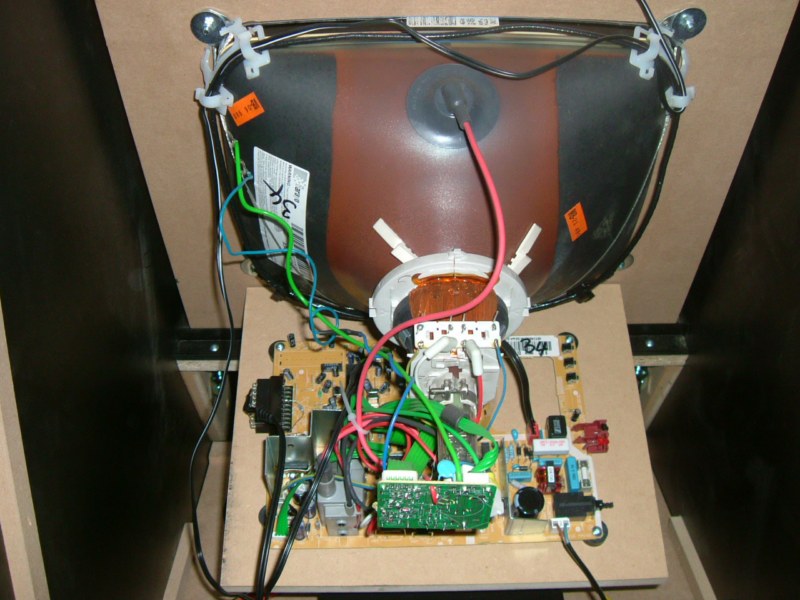

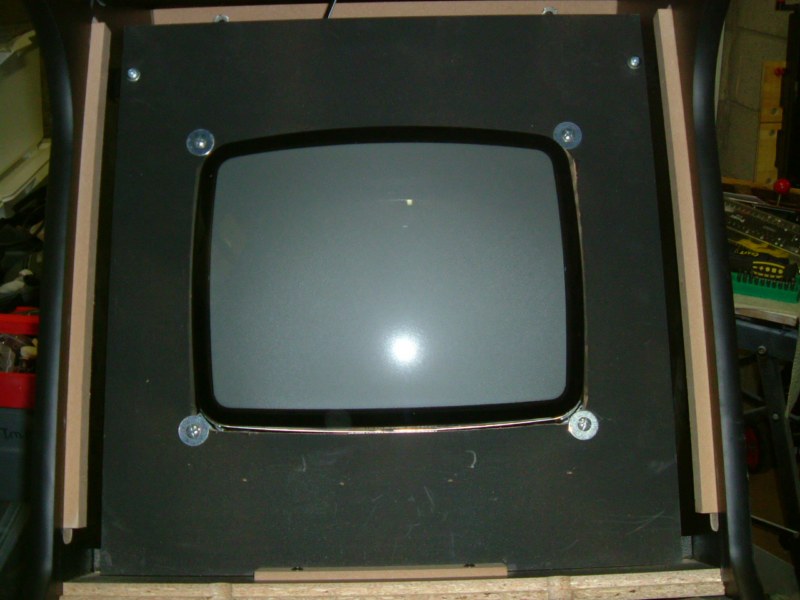

As you can now see - its a cheap 12/14" TV with a scart socket, a resistor has been soldered to the back of the socket so it switches to AV on switch-on.

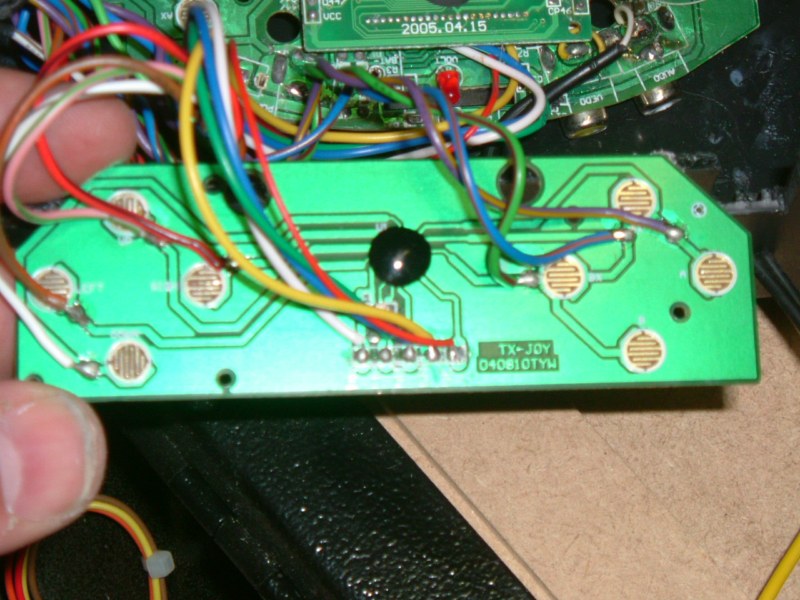

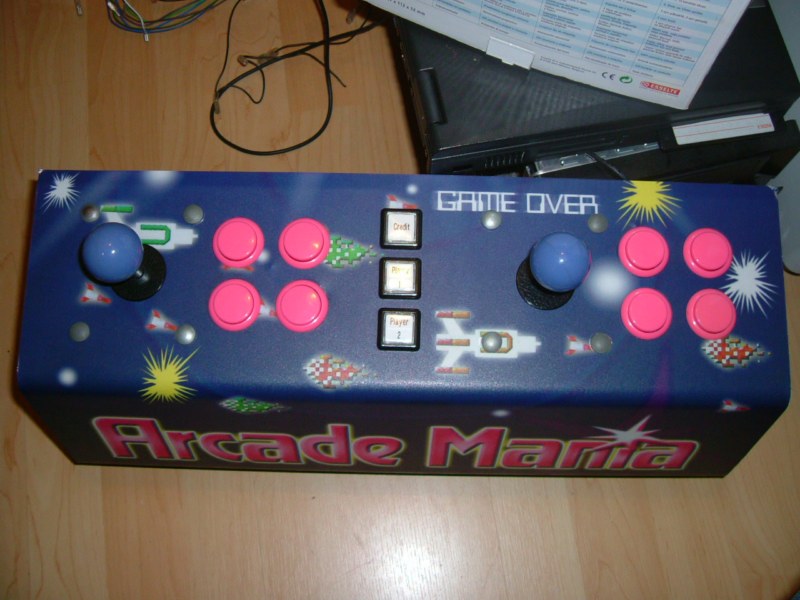

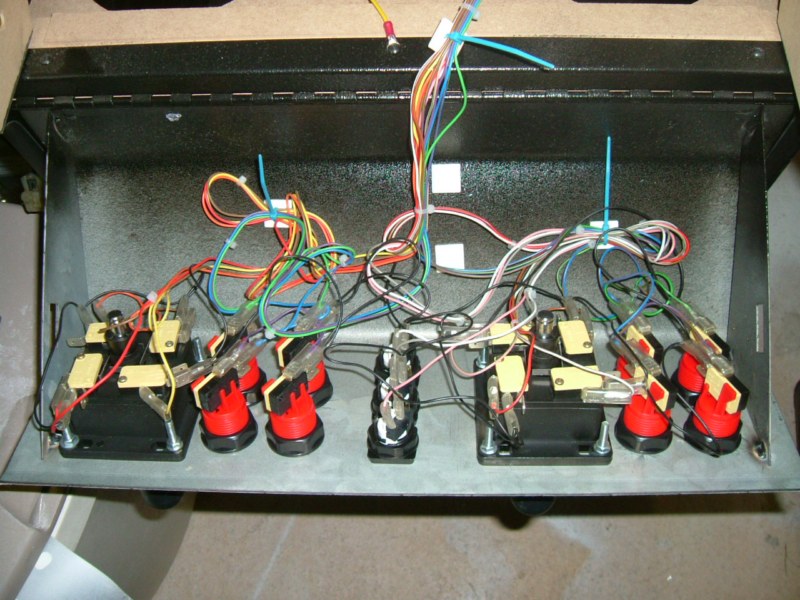

The controls are the cheapest X-Arcade clone sticks & buttons i've seen and are wired to a 25-pin din plug which plugs into this black box that has been velcro'd onto the shelf - Suprise, the CP is actually earthed!

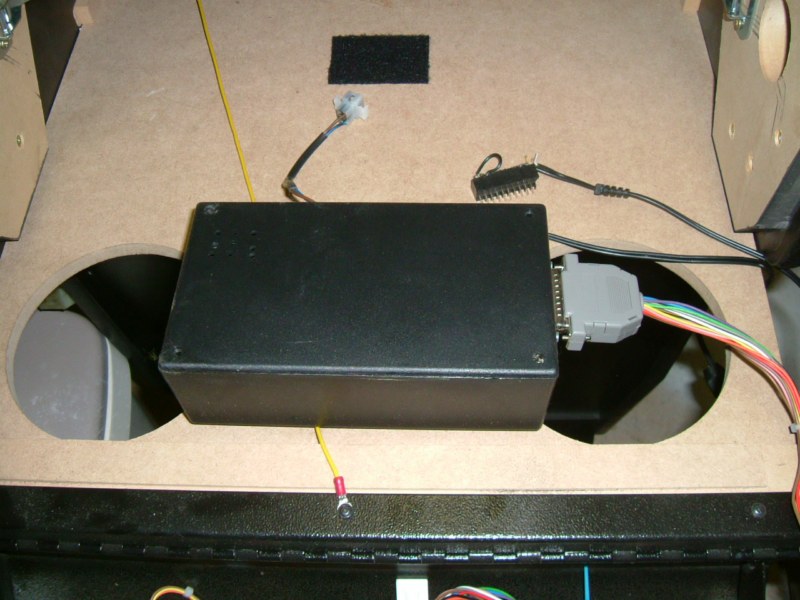

The black box has three wires coming out, Mains-in, Composite video out to scart plug (they didnt even bother fitting the scart cover) & a 25-pin din that connects to the CP.

Back to Top
penrhos View Drop Down
Moderator
Moderator
Avatar

Joined: 28 August 2006
Location: Leicestershire
Status: Offline
Points: 3140 		Post Options Post Options   Thanks (0) Thanks(0)   Quote penrhos Quote  Post ReplyReply Direct Link To This Post Posted: 02 September 2010 at 10:00pm

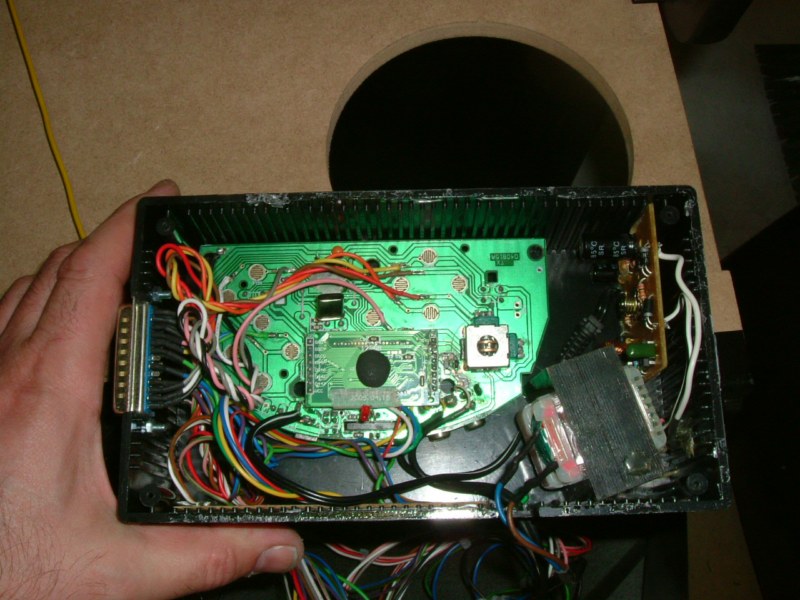

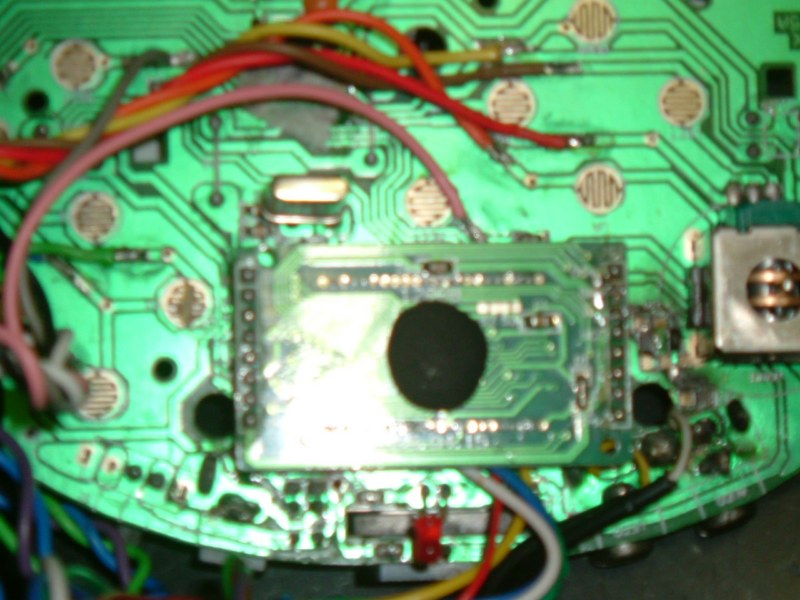

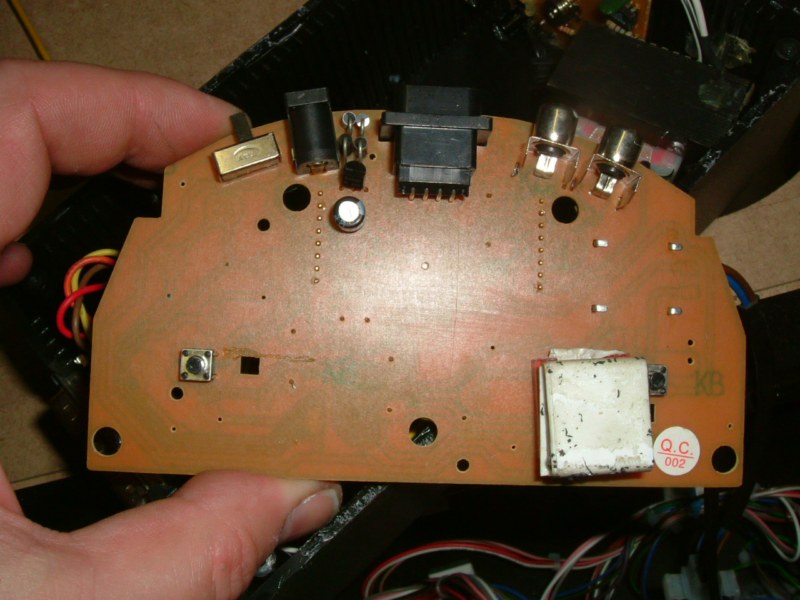

Lets "Open the box!"

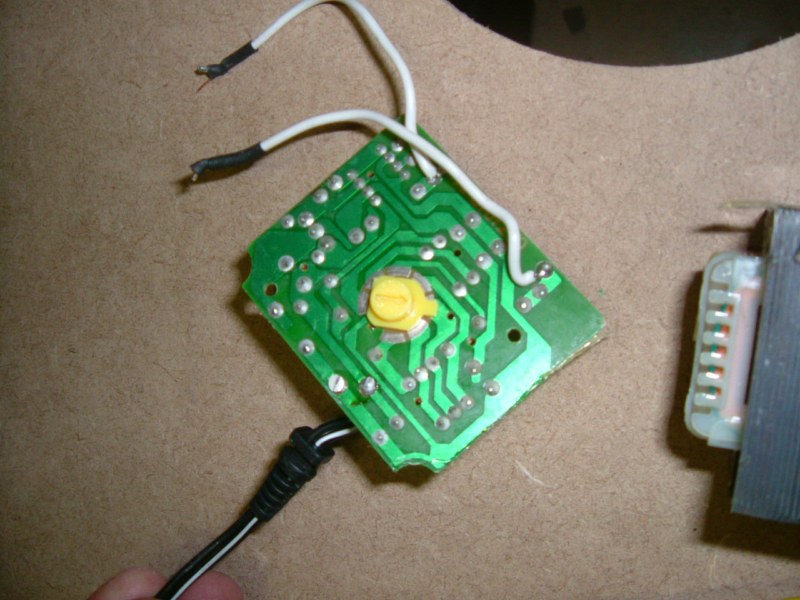

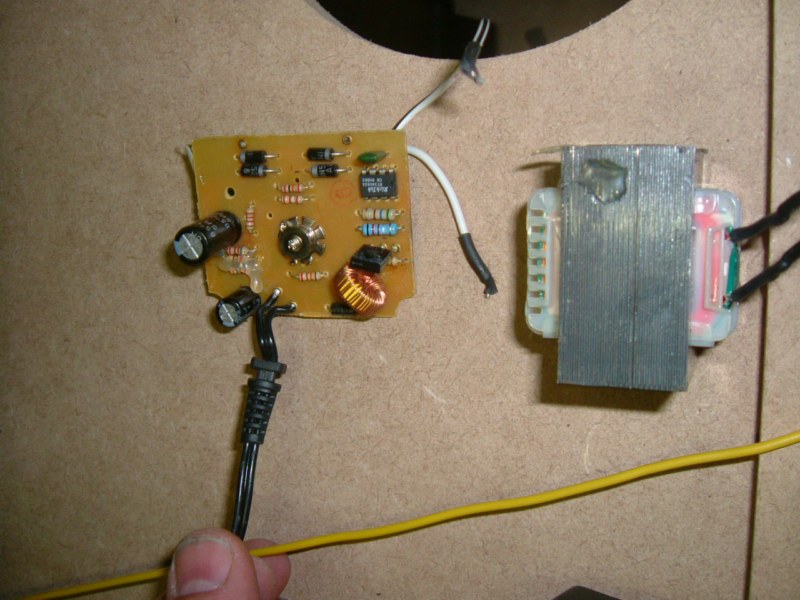

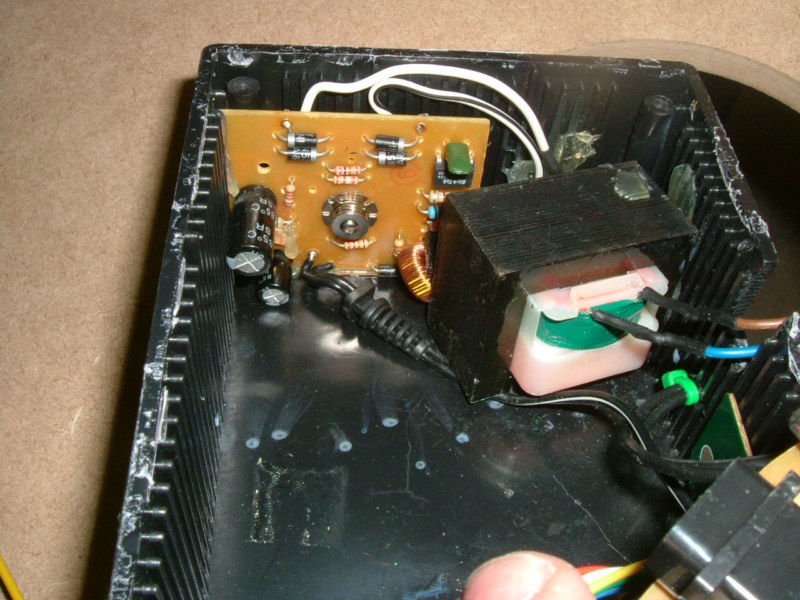

Yes - your eyes do not decieve you that is a de-cased multi-voltage transformer glued in the corner of a Maplins project box. and it's powering a de-cased x-in-1 Joypad. So about £20 tops....
Back to Top
penrhos View Drop Down
Moderator
Moderator
Avatar

Joined: 28 August 2006
Location: Leicestershire
Status: Offline
Points: 3140 		Post Options Post Options   Thanks (1) Thanks(1)   Quote penrhos Quote  Post ReplyReply Direct Link To This Post Posted: 02 September 2010 at 10:22pm
Let's Improve it so I can get rid of it.

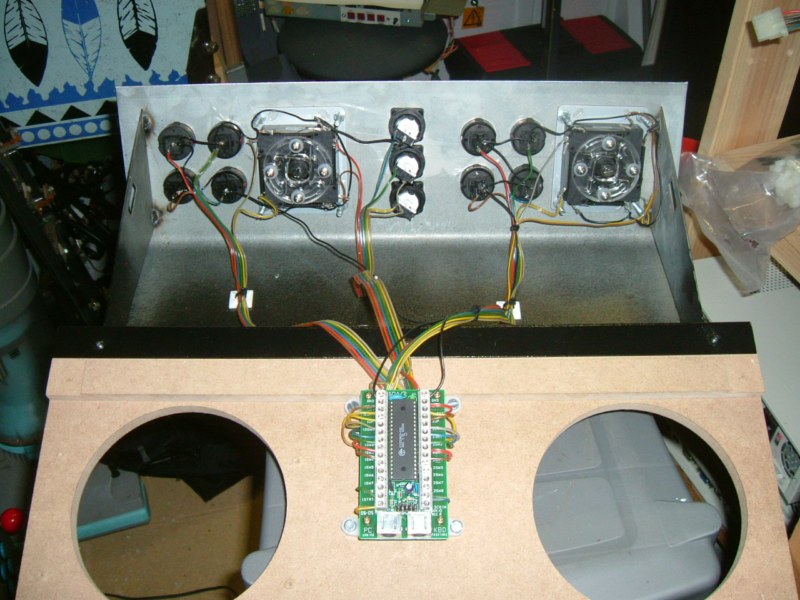

Replaced the sticks with Sanwa and the buttons with some Semitsiu I had lying around & connect them up to an I-PAC.

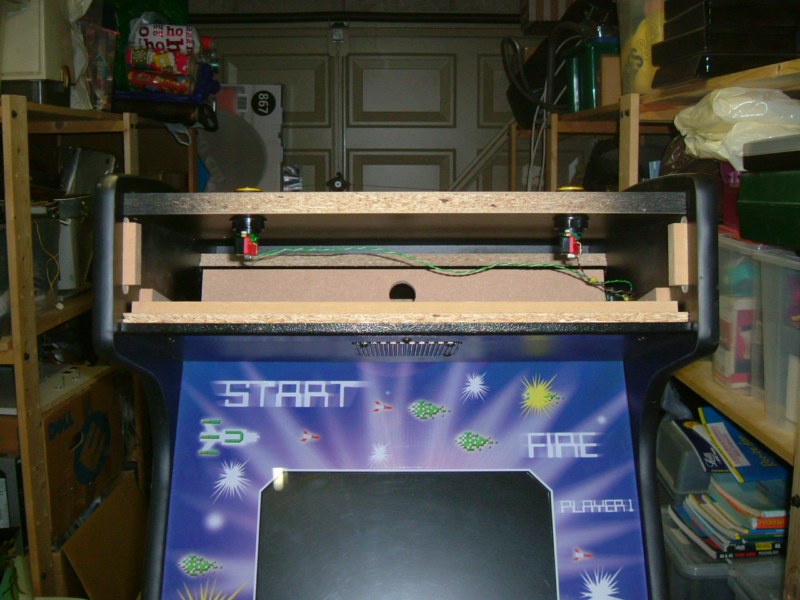

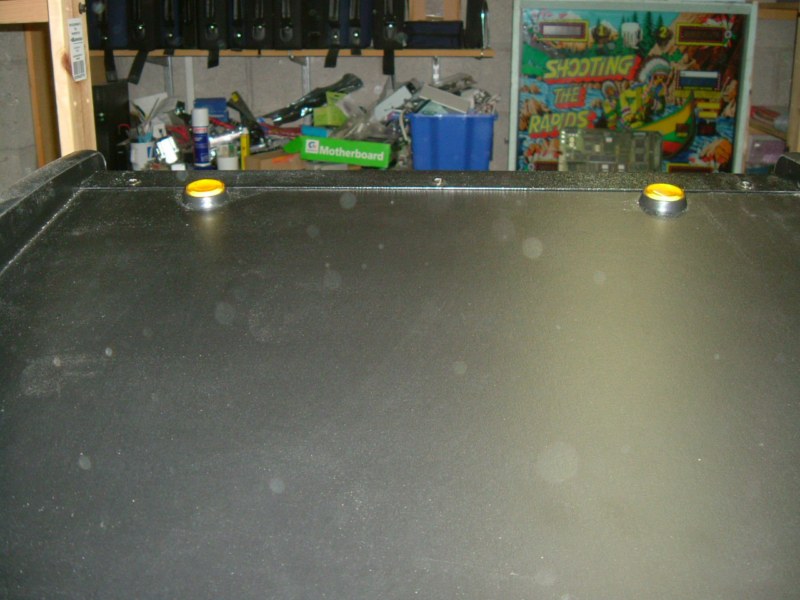

Added two buttons on the top for PC power & Reset.

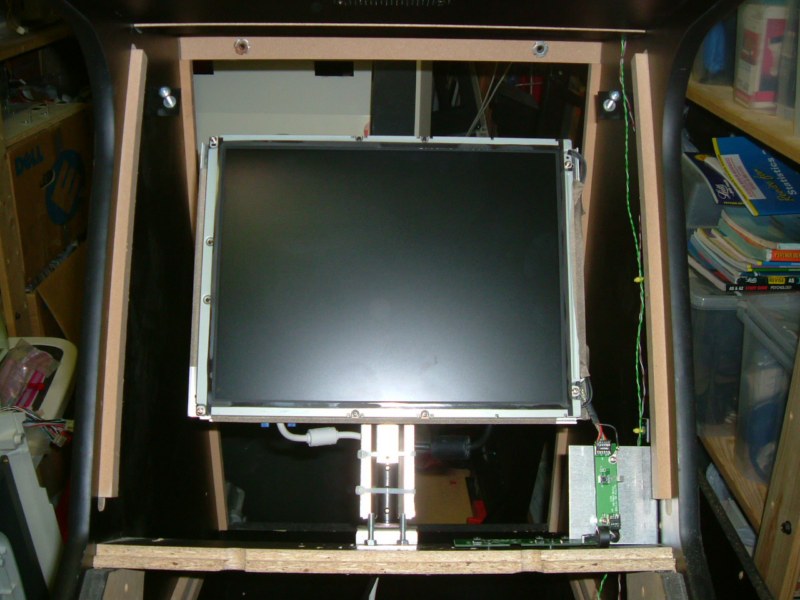

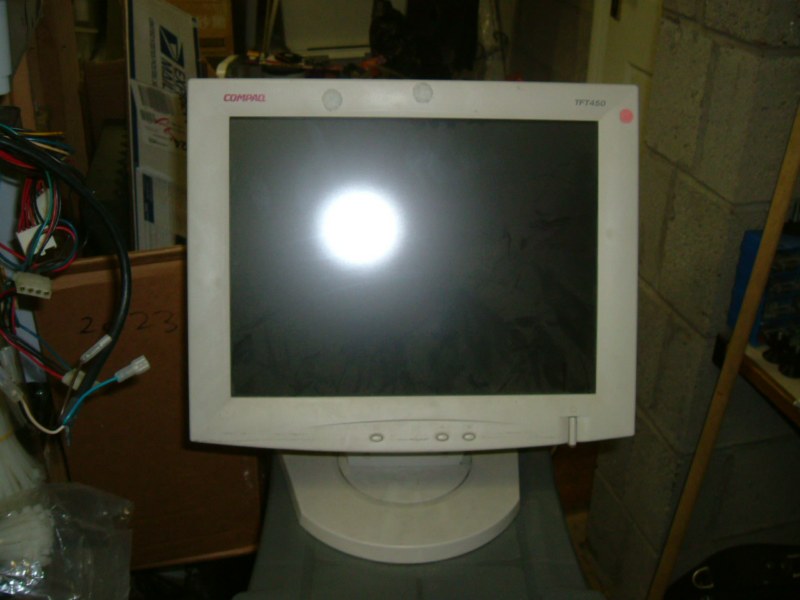

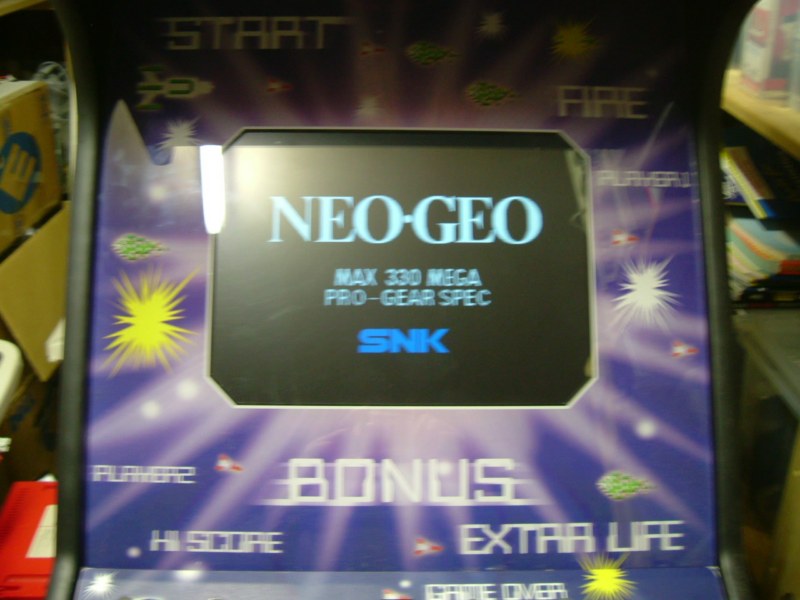

De-cased an old 15" Compaq TFT I had and screwed the base to the original monitor shelf (needed a bit of beefing up with some extra MDF and a couple of L-brackets) - not shown I pug a piece of wood across the inside of the cab behind the top of the screen to stop it tipping backwards..

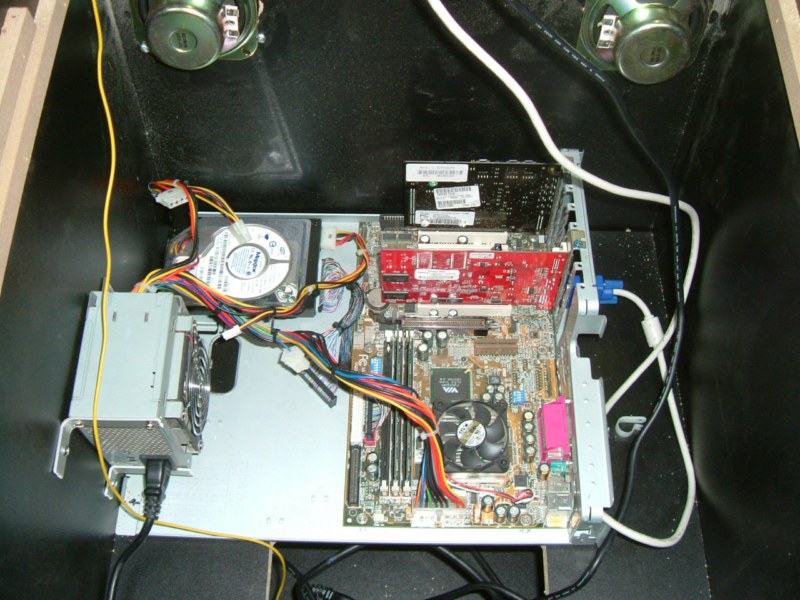

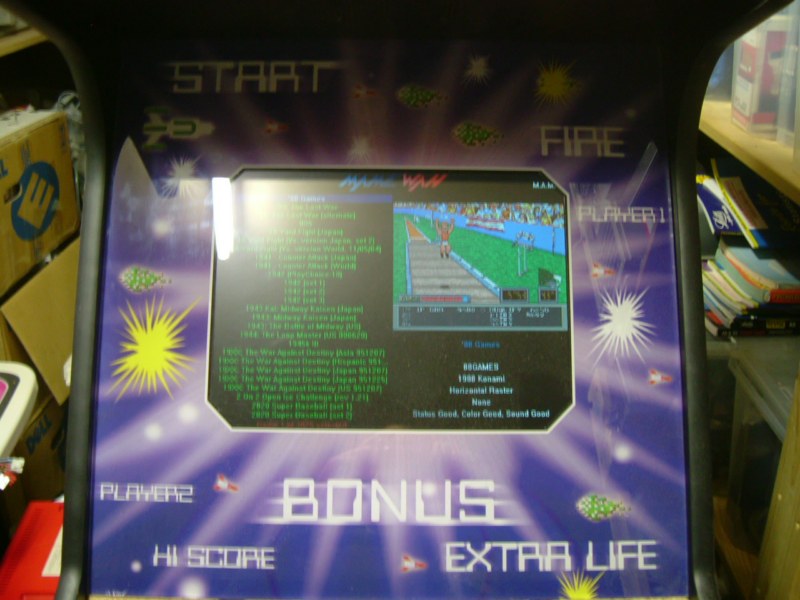

The PC is an AMD XP 2000 with 512M ram, 40G hdd and MAME V100 + Mamewah frontend.

Sound is provided by some de-cased USB powered PC speakers.

Job done....
Back to Top
muddymusic View Drop Down
Kill Screen
Kill Screen
Avatar
Official Porchy fan club member

Joined: 08 June 2010
Location: Cornwall
Status: Offline
Points: 13987 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muddymusic Quote  Post ReplyReply Direct Link To This Post Posted: 02 September 2010 at 10:31pm
Thanks for reposting.
I really can't believe what these are for sale at new Confused shocking rip off all the way.Thumbs Down
Back to Top
retromax View Drop Down
Kill Screen
Kill Screen
Avatar
Bigger than Zod!

Joined: 09 August 2009
Location: West Yorkshire
Status: Offline
Points: 6038
 Post Options Post Options   Thanks (0) Thanks(0)   Quote retromax Quote  Post ReplyReply Direct Link To This Post Posted: 02 September 2010 at 10:44pm
Yeah big thanks for re-posting thisBig smile, OMG I really can't believe what's inside those things!!!, they look so proffesionally builtDead
AW probably made these things with all the geniune arcade stuff insideLOL

Great postClap

edit: Oh and great work BTW on what you ended up doing with it!


Edited by retromax - 02 September 2010 at 10:45pm
What is your major malfunction, numbnuts?
Back to Top
g00n3r View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 17 January 2007
Location: Dorset
Status: Offline
Points: 1587 		Post Options Post Options   Thanks (0) Thanks(0)   Quote g00n3r Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 10:06am
Brilliant post, I'm stunned at how badly made they were. Thumbs Down

Much improved by yourself of course. Thumbs Up
Back to Top
vib_ribbon View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 08 February 2007
Location: Essex
Status: Offline
Points: 10972
 Post Options Post Options   Thanks (0) Thanks(0)   Quote vib_ribbon Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 10:15am
love it! blast from the past and your trusty trailer. Embarrassed
Please don't sell me anymore stuff!
Games fixed: 001 (green beret) 002 (ikari warriors) 003 (victory road) 004 (sfz2) 005 (double dragon) 006 (final fight) 007 (sky shark) 008 (ninja turtles)
Back to Top
PAC-MAN View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 23 December 2005
Location: UK
Status: Offline
Points: 2339 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PAC-MAN Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 10:20am
Nice post... i'm also amazed at how bad these are Thumbs Down
Donkey Kong Junior High Score - 837,500
Donkey Kong High Score - 442,800
Wanted - Kill Screen
Back to Top
highwayman View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 28 February 2008
Location: Ruined London
Status: Offline
Points: 4908 		Post Options Post Options   Thanks (0) Thanks(0)   Quote highwayman Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 11:28am

what's the core of it, is it a megadrive on a chip, or something even worse?


Back to Top
cools View Drop Down
High Score
High Score


Joined: 20 March 2008
Status: Offline
Points: 857 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cools Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 11:44am
Originally posted by penrhos penrhos wrote:

Yes - your eyes do not decieve you that is a de-cased multi-voltage transformer glued in the corner of a Maplins project box. and it's powering a de-cased x-in-1 Joypad. So about £20 tops....
Back to Top
EQUITES View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 20 October 2009
Location: Cheshire
Status: Offline
Points: 4145 		Post Options Post Options   Thanks (0) Thanks(0)   Quote EQUITES Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 12:22pm
Thanks for posting that, it made me chuckle.
Back to Top
AeroCityMayor View Drop Down
Kill Screen
Kill Screen
Avatar
Entity previously known as alien_mame

Joined: 18 May 2005
Location: West Yorkshire
Status: Offline
Points: 1154 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AeroCityMayor Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 1:17pm
I never cease tobe shocked athow truly bad these things are!!!

Thanks for the repost Penrhos.

Cheers,

Ralph.
Coherence of posts inversely proportional to Foster's consumption!!!
Back to Top
Bods View Drop Down
Kill Screen
Kill Screen
Avatar
Ninja Warrior

Joined: 25 September 2004
Location: Leicestershire
Status: Offline
Points: 9448
 Post Options Post Options   Thanks (0) Thanks(0)   Quote Bods Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 3:10pm

So can you identify what 150 in 1 game thing the pcb is out of, I'd love to see a pic of one and the cost of itSmile

Those Compaq monitors were dreadful, wonder where you got that fromWink I worked out the faults on the psu being dead and the monitor screen interference issues, apart from that the backlights were about deadLOL
WANTED! Buggy Boy Junior Rear Seat. Continental Circus Cockpit Lower Rear Light Plexi
Back to Top
Bods View Drop Down
Kill Screen
Kill Screen
Avatar
Ninja Warrior

Joined: 25 September 2004
Location: Leicestershire
Status: Offline
Points: 9448
 Post Options Post Options   Thanks (0) Thanks(0)   Quote Bods Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 3:15pm
http://cgi.ebay.co.uk/SYSTEMA-VERY-RARE-VINTAGE-TV-BOY-CONSOLE-BOXED-RETRO-/180551848872?pt=UK_VintageComputing_RL&hash=item2a09ba93a8#ht_500wt_1154

LOL why would you
WANTED! Buggy Boy Junior Rear Seat. Continental Circus Cockpit Lower Rear Light Plexi
Back to Top
PAC-MAN View Drop Down
Kill Screen
Kill Screen
Avatar

Joined: 23 December 2005
Location: UK
Status: Offline
Points: 2339 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PAC-MAN Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 3:54pm
Originally posted by Bods Bods wrote:

http://cgi.ebay.co.uk/SYSTEMA-VERY-RARE-VINTAGE-TV-BOY-CONSOLE-BOXED-RETRO-/180551848872?pt=UK_VintageComputing_RL&hash=item2a09ba93a8#ht_500wt_1154

LOL why would you
Somebody's in for a s hit Christmas LOL
Donkey Kong Junior High Score - 837,500
Donkey Kong High Score - 442,800
Wanted - Kill Screen
Back to Top
Nukem View Drop Down
Admin
Admin
Avatar
Chief Cynthia

Joined: 21 September 2007
Location: UK
Status: Offline
Points: 16263
 Post Options Post Options   Thanks (0) Thanks(0)   Quote Nukem Quote  Post ReplyReply Direct Link To This Post Posted: 03 September 2010 at 6:16pm
Wow the quality is staggering LOL

If I were selling crap like that I would at least seal the box in resin so it's a bit harder to get in LOL

Good post Thumbs Up

Moved to General and made sticky for all to see Smile


Edited by Aran - 03 September 2010 at 6:24pm
http://www.consolecollect.com <-- Jamma+'s New Sister Site For Console Collectors Old & New
Back to Top
venkman View Drop Down
High Score
High Score
Avatar

Joined: 05 August 2009
Location: USA / Scotland
Status: Offline
Points: 882 		Post Options Post Options   Thanks (0) Thanks(0)   Quote venkman Quote  Post ReplyReply Direct Link To This Post Posted: 04 September 2010 at 10:23am
wow, great that you investigated and fixed it up a little. i hope the Amazon review put people off them!
http://mysuperarcade.posterous.com/
Back to Top
andrewberwick06 View Drop Down
Patreon
Patreon
Avatar

Joined: 10 July 2010
Location: Romford.
Status: Offline
Points: 2861 		Post Options Post Options   Thanks (0) Thanks(0)   Quote andrewberwick06 Quote  Post ReplyReply Direct Link To This Post Posted: 04 September 2010 at 10:38am
did it have made in china on it ? :)
